Demo Questions

Question 1
A developer creates a message flow that uses a DecisionService Node. Which command must the developer use before deploying the message flow?
  1. mqsicvp
  2. mqsimode
  3. mqsichangebroker
  4. mqsichangeproperties
Correct answer: B
Explanation:
Before you deploy message flows that contain a DecisionService node, you must enable the mode extension by using the mqsimode command:mqsimode -x DecisionServices Incorrect Answers:A: The mqsicvp command is run automatically when you start a broker by using the mqsistart command. The command checks that the broker environment is set up correctly. This checking has been enhanced to verify that the ODBC environment is configured correctly on Linux and UNIX systems.References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bc23793_.htm
Before you deploy message flows that contain a DecisionService node, you must enable the mode extension by using the mqsimode command:
mqsimode -x DecisionServices
Incorrect Answers:
A: The mqsicvp command is run automatically when you start a broker by using the mqsistart command. The command checks that the broker environment is set up correctly. This checking has been enhanced to verify that the ODBC environment is configured correctly on Linux and UNIX systems.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bc23793_.htm
Question 2
In the User Trace output shows the following message:
2016-04-12  16:17:18.242605   5344  UserTrace  BIP2539I:  Node
'Reply.MapToRequestor':
Evaluating expression ''I + 1''
at
('MapToRequestor.CopyMessageHeaders',  '6.14').  This resolved to ''1 + 1''. The result was ''2''.
What does 6.14 indicate here?
  1. Line 6, Column 14 in the CopyMessageHeaders node.
  2. Line 14, Column 6 in CopyMessageHeaders node.
  3. Column 6, line 14 in the CopyMessageHeaders function of MapToRequestor.
  4. Line 6, Column 14 in the CopyMessageHeaders function of MapToRequestor.
Correct answer: D
Explanation:
References such as '6.14' apply to the row and column number within a function that specify the location of the command that is being executed; in this case, row 6, column 14. Example:2005-07-12 16:17:18.242605       5344   UserTrace   BIP2539I: Node 'Reply.MapToRequestor':Evaluating expression ''I'' at ('.MapToRequestor.CopyMessageHeaders', '6.12'). This resolved to ''I''. The result was ''1''. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/au14320_.htm
References such as '6.14' apply to the row and column number within a function that specify the location of the command that is being executed; in this case, row 6, column 14.
Example:
2005-07-12 16:17:18.242605       5344   UserTrace   BIP2539I: Node 'Reply.MapToRequestor':
Evaluating expression ''I'' at
('.MapToRequestor.CopyMessageHeaders',
'6.12'). This resolved to ''I''. The
result was ''1''.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/au14320_.htm
Question 3
Which protocol for security is not supported by IBM Integration Bus?
  1. OAuth 2.0
  2. SAML assertion
  3. X.509 certificate
  4. User Id + Password
Correct answer: A
Explanation:
Setting up message flow security Set up security on a message flow to control access based on the identity of a message passing through the message flow. You can configure the broker to perform end-to-end processing of an identity carried in a message through a message flow. Administrators can configure security at message flow level, controlling access based on the identity flowed in a message. This security mechanism is independent of both the transport and the message format. To work with an identity, you must configure the policy sets and bindings for the relevant capabilities:To work with a SAML assertion, configure the policy sets and bindings for SAML token capabilities. To work with an X.509 Certificate identity, configure the policy sets and bindings for X.509 certificate token capabilities. To work with a Username and Password identity, configure the policy sets and bindings for Username token capabilities. To work with an LTPA token, configure the policy sets and bindings for LTPA token capabilities. To work with a Kerberos ticket, configure the policy sets and bindings for Kerberos token capabilities. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ap04170_.htm
Setting up message flow security
Set up security on a message flow to control access based on the identity of a message passing through the message flow.
You can configure the broker to perform end-to-end processing of an identity carried in a message through a message flow. Administrators can configure security at message flow level, controlling access based on the identity flowed in a message. This security mechanism is independent of both the transport and the message format.
  • To work with an identity, you must configure the policy sets and bindings for the relevant capabilities:
  • To work with a SAML assertion, configure the policy sets and bindings for SAML token capabilities.
  • To work with an X.509 Certificate identity, configure the policy sets and bindings for X.509 certificate token capabilities.
  • To work with a Username and Password identity, configure the policy sets and bindings for Username token capabilities.
  • To work with an LTPA token, configure the policy sets and bindings for LTPA token capabilities.
  • To work with a Kerberos ticket, configure the policy sets and bindings for Kerberos token capabilities.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ap04170_.htm
Question 4
A developer is trying to investigate slow processing times with a specific message flow. What tool would be used to investigate this?
  1. Service trace
  2. Debug mode
  3. Resource Statistics
  4. Accounting and Statistics
Correct answer: C
Explanation:
You can use the message flow statistics data to help you identify aspects of a message flow that might be reducing the performance of the flow, and to help you understand how you can optimize it. If you detect that system resources are under pressure, you can examine the statistics collected by the broker to assess whether the cause of the concern is the use of those resources by processes in IBM Integration Bus. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/bj43310_.htm
You can use the message flow statistics data to help you identify aspects of a message flow that might be reducing the performance of the flow, and to help you understand how you can optimize it.
If you detect that system resources are under pressure, you can examine the statistics collected by the broker to assess whether the cause of the concern is the use of those resources by processes in IBM Integration Bus.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/bj43310_.htm
Question 5

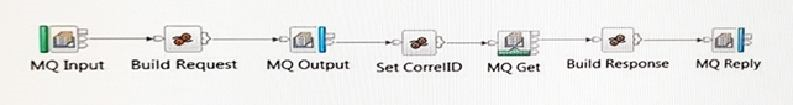

A service interacts with a backend system which replies with a message correlation. When processing request/response messages from the backend, no messages were received by the flow.

Which may be the probable cause of failure?
  1. The transaction was set to automatic on the MQOutput Node.
  2. The developer should have used the MQInput Node instead of the MQGet Node.
  3. The Integration Node is configured in a MQ cluster for load balancing and the object descriptor is set to the ReplyToQueueManager.
  4. The backend request/reply message processing can only be accomplished by breaking up the flow into two flows.
Correct answer: A
Explanation:
When you define an MQOutput node, the option that you select for the Transaction Mode property defines whether the message is written under sync point:If you select Yes, the message is written under sync point (that is, within a WebSphere MQ unit of work). If you select Automatic (the default), the message is written under sync point if the incoming input message is marked as persistent. If you select No, the message is not written under sync point. Incorrect Answers:B: You can use an MQGet node anywhere in a message flow, unlike an MQInput node, which you can use only as the first node in a message flow.References:https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac04570_.htmhttps://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac20806_.htm
When you define an MQOutput node, the option that you select for the Transaction Mode property defines whether the message is written under sync point:
If you select Yes, the message is written under sync point (that is, within a WebSphere MQ unit of work).
If you select Automatic (the default), the message is written under sync point if the incoming input message is marked as persistent.
If you select No, the message is not written under sync point.
Incorrect Answers:
B: You can use an MQGet node anywhere in a message flow, unlike an MQInput node, which you can use only as the first node in a message flow.
References:
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac04570_.htm
https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac20806_.htm
Question 6
Which statement regarding security profiles is true?
  1. Multiple security providers cannot be created in one security profile.
  2. A security profile can be created for LDAP or a WS-Trust V1.3 STS.
  3. The command mqsichangeconfigurableservice can be used to change a security profile.
  4. If WS-Trust v1.3.STS is selected for more than one operation, the WS-Trust URL must be different and unique for each of the operations.
Correct answer: B
Explanation:
You can create a security profile for use with Lightweight Directory Access Protocol (LDAP) or a WS-Trust V1.3 compliant security token server (STS), such as Tivoli Federated Identity Manager (TFIM) V6.2. Support is also provided for TFIM V6.1, for compatibility with previous versions of IBM Integration Bus. You can create the security profile by using either the mqsicreateconfigurableservice command or an editor in the IBM Integration Explorer. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ap04170_.htm
You can create a security profile for use with Lightweight Directory Access Protocol (LDAP) or a WS-Trust V1.3 compliant security token server (STS), such as Tivoli Federated Identity Manager (TFIM) V6.2. Support is also provided for TFIM V6.1, for compatibility with previous versions of IBM Integration Bus. You can create the security profile by using either the mqsicreateconfigurableservice command or an editor in the IBM Integration Explorer.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ap04170_.htm
Question 7
The format of a policy UPL is apiv1/policy/MQTTSubscribe/Test. What policy has the developer created?
  1. MQTTSubscribe Policy 1
  2. MQTTSubscribe Policy Test
  3. MQTTSubscribe Policy apiv1
  4. MQTTSubscribe Policy policy
Correct answer: B
Explanation:
The format of a policy URL is /apiv1/policy/policy type/policy name. For example, /apiv1/policy/MQTTSubscribe/Policy1. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi62100_.htm
The format of a policy URL is /apiv1/policy/policy type/policy name. For example, /apiv1/policy/MQTTSubscribe/Policy1.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi62100_.htm
Question 8
A message flow is started with JMSInput node and no Message Domain is specified. The flow received an input message of type TextMessage with no JMSType header included. What would the default message domain be as the message is propagated out of the node?
  1. XML
  2. BLOB
  3. XMLNSC
  4. JMSStream
Correct answer: B
Explanation:
The Message domain is used to parse the message. If the field is blank then the default is BLOB. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac24820_.htm
The Message domain is used to parse the message. If the field is blank then the default is BLOB.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/ac24820_.htm
Question 9
What are two options for creating an MQEndpoint policy? (Select 2.)
  1. Use the BAR file editor.
  2. Use Integration Bus Explorer.
  3. Use the mqsicreatepolicy command.
  4. Use the mqsiattachpolicy command.
  5. Use the Integration Bus web user interface.
Correct answer: CE
Explanation:
You can use the following tools to create, attach, and manage MQEndpoint policies:Command line To create a policy, use the mqsicreatepolicy command. For more information, see Creating and importing policies. Web user interface (UI) IBM Integration Toolkit Representational State Transfer (REST) application programming interface (API) References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi62102_.htm
You can use the following tools to create, attach, and manage MQEndpoint policies:
  • Command line
    To create a policy, use the mqsicreatepolicy command. For more information, see Creating and importing policies.
  • Web user interface (UI)
  • IBM Integration Toolkit
  • Representational State Transfer (REST) application programming interface (API)
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_10.0.0/com.ibm.etools.mft.doc/bi62102_.htm
Question 10
What can the DatabaseInput node be configured to do?
  1. Insert data in a database.
  2. Update data in a database.
  3. Update the local environment tree.
  4. Retrieve data from a database.
Correct answer: D
Explanation:
Use the DatabaseInput node to detect events recorded in a database, and to retrieve the data affected by those events. References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/bc34041_.htm
Use the DatabaseInput node to detect events recorded in a database, and to retrieve the data affected by those events.
References: https://www.ibm.com/support/knowledgecenter/en/SSMKHH_9.0.0/com.ibm.etools.mft.doc/bc34041_.htm
