Question 1
An engineer must configure a CLI add-on feature template in Cisco vManage for enhanced policy-based routing (ePBR) for IPv4. These configurations were deleted:
  • licensing config enable false
  • licensing config privacy hostname true
  • licensing config privacy version false
  • licensing config utility utility-enable true
Drag and drop the steps from the left onto the order on the right to complete the configuration.
Correct answer: To display the answer, ProfExam Simulator is required.
Explanation:
CLI Add-On Feature Templates - CiscoCisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature TemplatesCisco SD-WAN vSmart CLI Template - NetworkLessons.comCLI Templates for Cisco XE SD-WAN Routers
CLI Add-On Feature Templates - Cisco
Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates
Cisco SD-WAN vSmart CLI Template - NetworkLessons.com
CLI Templates for Cisco XE SD-WAN Routers
Question 2
An engineer must configure an AppGoE service node for WAN optimization for applications that are hosted in the cloud using Cisco vManage for C8000V or C8500L-8S4X devices. Drag and drop the steps from the left onto the order on the right to complete the configuration.
Correct answer: To display the answer, ProfExam Simulator is required.
Explanation:
AppQoE - Step-by-Step Configuration - Cisco CommunityCisco Catalyst SD-WAN AppQoE Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x
AppQoE - Step-by-Step Configuration - Cisco Community
Cisco Catalyst SD-WAN AppQoE Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x
Question 3

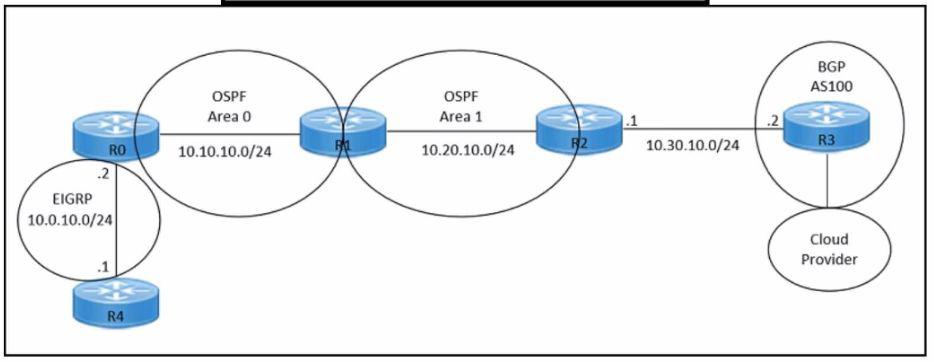

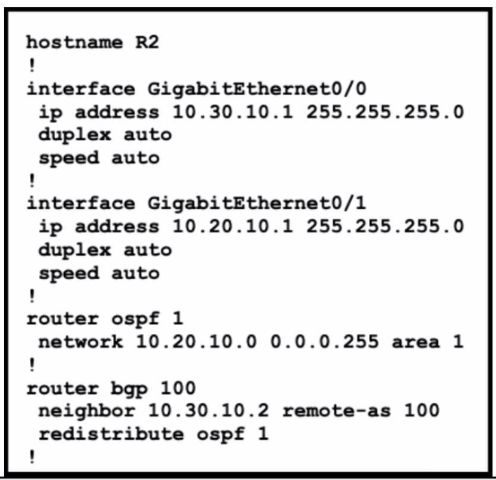

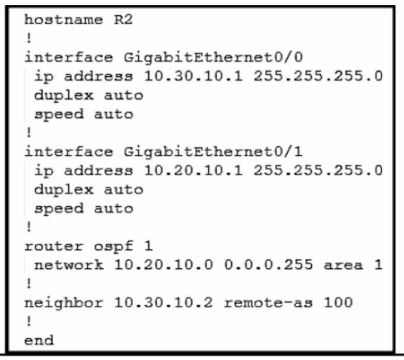

Refer to the exhibits.


Refer to the exhibits. An engineer must redistribute only the 10.0.10.0/24 network into BGP to connect an on-premises network to a public cloud provider. These routes are currently redistributed:

Which command is missing on router R2?
  1. neighbor 10.0.10.2 remote-as 100
  2. redistribute ospf 1 match internal
  3. redistribute ospf 1 match external
  4. neighbor 10.0.10.0/24 remote-as 100
Correct answer: C
Explanation:
The commandredistribute ospf 1 match externalis missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario.Reference:Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs
The commandredistribute ospf 1 match externalis missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario.
Reference:
Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs
