Demo Questions

Question 1
How does AP failover priority for access points function when configured with priority 1 or 4?
  1. When configured with priority 1, the access point is assigned with the highest priority level, and it is marked as critical. This access point fails over before other access points with the lower priority when there is primary controller failure.
  2. When configured with priority 4, the access point is assigned with the highest priority level, and it is marked as critical. This access point fails over before other access points with the lower priority when there is primary controller failure.
  3. When configured with priority 4, the access point is assigned with the lowest priority level, and it is marked as low. This access point fails over after other access points with the higher priority when there is primary controller failure.
  4. When configured with priority 1, the access point is assigned with the medium priority level, and it is marked as medium. This access point fails over after other access points with the higher priority when there is primary controller failure.
Correct answer: B
Question 2
An engineer is trying to determine the most cost-effective way to deploy high availability for a campus enterprise wireless network that currently leverages three wireless LAN controllers. Which architecture should the engineer deploy?
  1. N+N with SSO
  2. N+1 solution without SSO
  3. N+N solution without SSO
  4. N+1 with SSO
Correct answer: B
Question 3
An engineer is designing a wireless network to support high availability. The network will need to support the total number of APs and client SSO. Live services should continue to work without interruption during the failover. Which two requirements need to be incorporated into the design to meet these needs? (Choose two.)
  1. controller high availability pair with one of the WLCs having a valid AP count license
  2. WLC 7.5 code or more recent
  3. redundant vWLC
  4. 10 sec RTT
  5. back-to-back direct connection between WLCs
Correct answer: AB
Question 4

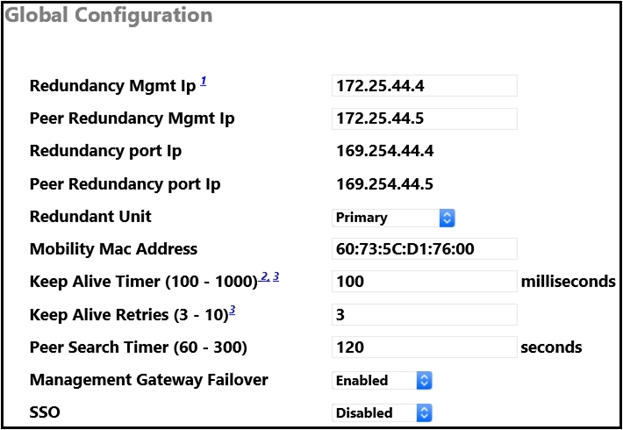

Refer to the exhibit. An enterprise is using wireless as the main network connectivity for clients. To ensure service continuity, a pair of controllers will be installed in a datacenter. An engineer is designing SSO on the pair of controllers. What needs to be included in the design to avoid having the secondary controller go into maintenance mode?
  1. The redundancy port must be the same subnet as the redundancy mgmt.
  2. The keep alive timer is too low, which causes synchronization problems.
  3. The connection between the redundancy ports is missing.
  4. The Global Configuration of SSO is set to Disabled on the controller.
Correct answer: C
Question 5
Two Cisco 5520 Wireless LAN Controllers are managing all APs throughout the network. The WLCs are in different locations to provide geographical redundancy.
A mobility group has been configured on both WLCs and has an UP status on both controllers. The APs in location A are statically configured to use controller A as the primary and controller B as the secondary. If the WLC in location A goes offline, the APs successfully join the WLC in location B, but they do not fail over to the primary configured controller. Which configuration task fixes this issue?
  1. Enable AP fallback globally on the WLC.
  2. Change the AP Failover Priority to critical.
  3. Use DHCP Option 43 and specify WLC in location A as primary.
  4. Configure the WLC in location A as primary using the CAPWAP AP Controller IP Address command on all the location A APs.
Correct answer: A
Question 6
During a wireless design all APs are mapped to designated controllers in case of a failure. The controllers are located in the same data center but in different racks. An AP failed over to a controller that was not defined on its High Availability tab. The customer does not want the AP to move back to its defined Cisco WLCs until they manually intervene. What needs to be addressed in the design?
  1. Set AP fallback to enabled.
  2. Set AP fallback to disabled.
  3. Change the HA SKU secondary unit option.
  4. Change the default mobility domain.
Correct answer: B
Question 7
A wireless engineer is utilizing the voice readiness tool in Cisco Prime for a customer that wants to deploy Cisco IP phones. Which dBm range is the network inspected against?
  1. גˆ’78 to גˆ’65 dBm
  2. גˆ’72 to גˆ’67 dBm
  3. גˆ’85 to גˆ’65 dBm
  4. גˆ’85 to גˆ’67 dBm
Correct answer: B
Question 8
A network engineer is troubleshooting connectivity issues between two WLCs running 8.x code in SSO mode and finds that the redundancy management heartbeat is failing. Which packet type must be filtered for heartbeats when taking a capture to verify communication?
  1. RSTP
  2. UDP
  3. TCP
  4. ICMP
Correct answer: B
Question 9
A customer is deploying an 802.11ac network on a floor to support approximately 300 wireless devices. Which setting must be changed on Cisco Prime Infrastructure Planning Tool to predict the number of APs the customer needs to service the new floor?
  1. Demand Settings
  2. Data Coverage Support Margin
  3. 802.11n Protocol Support
  4. Add AP Field
Correct answer: A
Question 10
An engineer must perform a Layer 2 survey for a mining facility. Which type of antenna does the engineer use in the mine shaft?
  1. omnidirectional
  2. patch
  3. internal
  4. dipole
Correct answer: B
