Demo Questions

Question 1
An engineer is implementing VSAN 10 on multiple Cisco Nexus 5600 Series Switches and must ensure that the full zone set and active zone set are identical across the fabric. Which configuration must be implemented to meet this requirement?
  1. switch(config)# zoneset distribute vsan 10
  2. switch(config)# zone-attribute-group name ATTR1 vsan 10
  3. switch(config)# zoneset distribute full vsan 10
  4. switch(config)# zoneset activate name ZONE10 vsan 10
Correct answer: C
Explanation:
C: 1 - Mosted
C: 1 - Mosted
Question 2

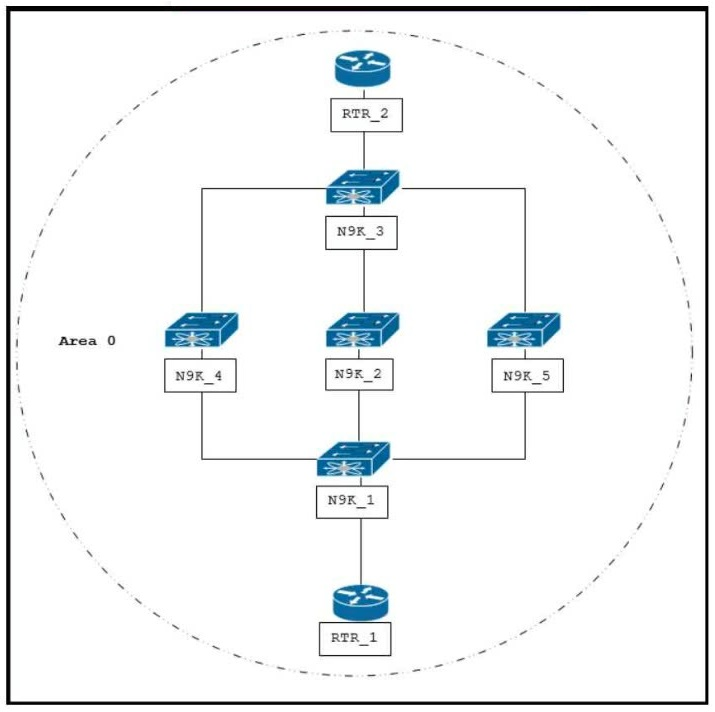

Refer to the exhibit. An engineer must upgrade the N9K_2 device to the latest code. In preparation for the upgrade, the engineer wants to divert all data plane traffic between RTR_1 and RTR_2 to N9K_4 and N9K_5. The traffic redirection must happen without forcing any OSPFv2 adjacency change in the network. Which configuration set must be used on N9K_2 OSPF process 1 to accomplish these goals?
  1. area 0 stub no-summary
  2. passive-interface default
  3. max-metric router-lsa
  4. area 0 filter-list route-map DENY_ALL out
Correct answer: C
Explanation:
B: 2C: 5 - Mosted
B: 2C: 5 - Mosted
Question 3

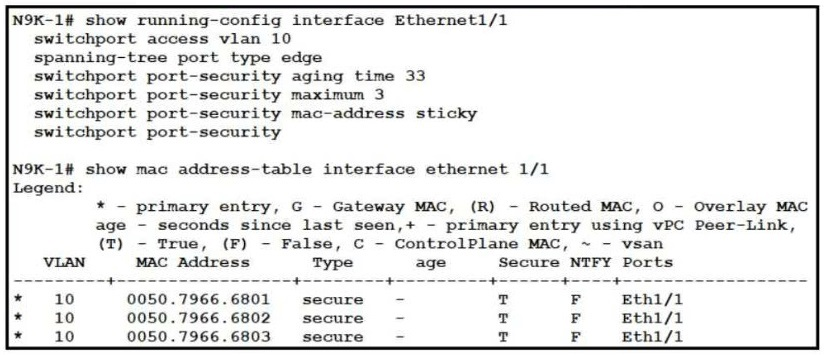

Refer to the exhibit. An engineer configures port security on a Cisco Nexus 9000 Series Switch. The requirement is to prevent any newly learned MAC addresses from forwarding traffic on the interface. Also, the already learned MAC addresses must not be affected by the changes. Which configuration meets these requirements?
  1. switchport port-security violation restrict
  2. switchport port-security violation protect
  3. switchport port-security violation isolate
  4. switchport port-security violation shutdown
Correct answer: B
Explanation:
A: 5B: 5 - Mosted
A: 5B: 5 - Mosted
Question 4
An engineer must configure a VDS port group using APIC policy. The requirements are for the frames to be mapped to a particular Layer 2 network and for the virtual machine assigned to the port group to receive all frames passed on the virtual switch.
Which two settings must be used to meet these requirements? (Choose two.)
  1. VLAN
  2. forged transmits
  3. port binding
  4. promiscuous mode
  5. VMDirectPath
Correct answer: AD
Explanation:
AD: 4 - Mosted
AD: 4 - Mosted
Question 5

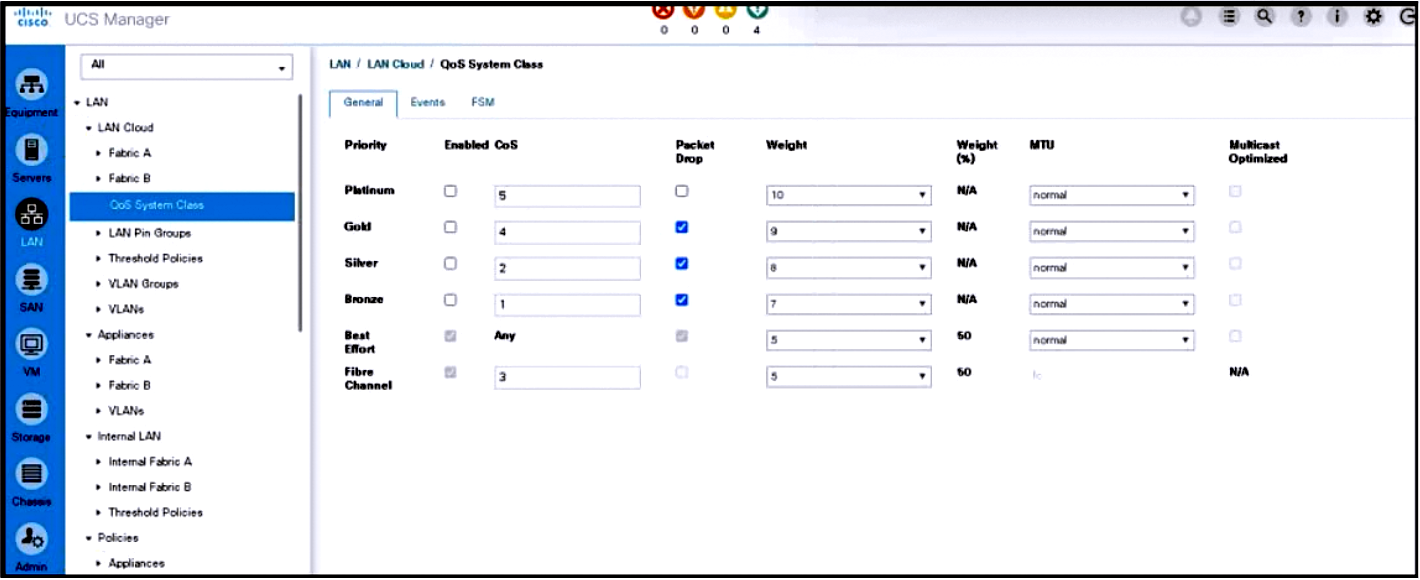

Refer to the exhibit. An engineer must configure a QoS policy that controls only vHBA traffic. Which policy must be used to meet this requirement?
  1. Fibre Channel
  2. Gold
  3. Platinum
  4. Best Effort
Correct answer: A
Explanation:
A: 1 - Mosted
A: 1 - Mosted
Question 6
A network administrator attempts to automate the provisioning of several new Cisco Nexus switches. The administrator prepares a bootstrap configuration script for the task. Due to the number of switches, a zero-touch provisioning solution is preferred. Additionally, some switches arrive with outdated software and should be automatically upgraded as part of the provisioning workflow. Which solution meets the requirements?
  1. Ansible
  2. NX-API
  3. POAP
  4. DHCP
Correct answer: C
Explanation:
C: 5 - Mosted
C: 5 - Mosted
Question 7
A bridge domain is being extended out of a Cisco ACI fabric. Between which of these components are policies used to identify the connectivity between Endpoint Groups and the external connection?
  1. internal contracts and external contracts
  2. an external bridge domain and an external routed domain
  3. internal EPGs and external EPGs
  4. L2Out and L3Out
Correct answer: C
Explanation:
C: 12 - MostedD: 9
C: 12 - MostedD: 9
Question 8

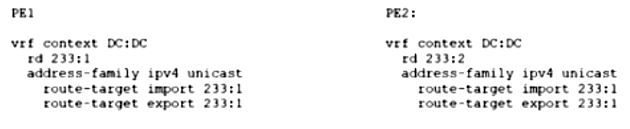

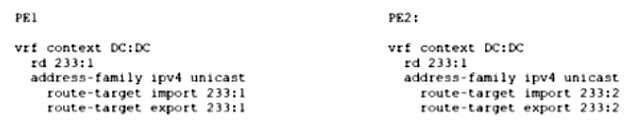

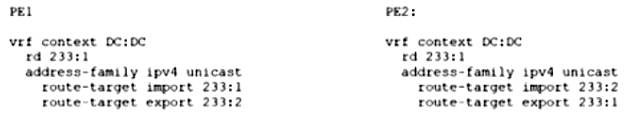

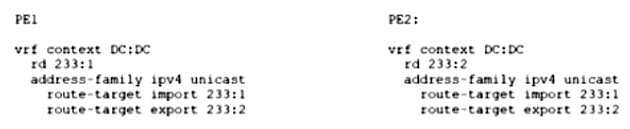

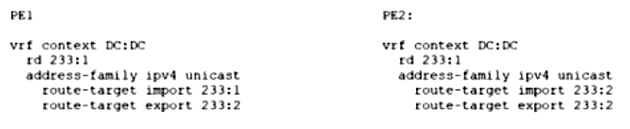

An engineer must add a new VRF (DC:DC) to the network that runs with Multiprotocol Border Gateway Protocol (MP-BGP) and EVPN. The requirement for the new VRF is to allow communication of network prefixes between PE1 and PE2. Which two sets of steps should be taken to complete the VRF configuration? (Choose two.)
Correct answer: BD
Explanation:
B: 2BD: 5 - Mosted
B: 2BD: 5 - Mosted
Question 9
The network team needs permissions to access the Cisco UCS B-Series Servers via the Cisco UCS Manager GUI to configure the network and collect information about faults. The administrator wants to assign these permissions to the newly configured user called netops. Which set of tasks must the administrator perform to accomplish these goals?
  1. Implement username netops on the locally authenticated user.
    Assign the roles of network administrator and operations.
  2. Configure username netops on the Cisco UCS Manager login profile.
    Assign the roles of AAA administrator and operations.
  3. Enable username netops on the authenticated users.
    Assign the roles of storage administrator and facility manager.
  4. Deploy username netops on the users locales.
    Assign the roles of networks security and facility manager.
Correct answer: A
Explanation:
A: 1 - Mosted
A: 1 - Mosted
Question 10
Which protocol does Cisco HyperFlex use to share data among nodes in a VMware vSphere environment?
  1. FCoE
  2. NFS
  3. CIFS
  4. SMB
Correct answer: B
Explanation:
B: 5 - Mosted
B: 5 - Mosted
