Download Implementing Cisco Collaboration Core Technologies (CLCOR).350-801.ExamTopics.2025-09-21.443q.vcex
| Vendor: | Cisco |
| Exam Code: | 350-801 |
| Exam Name: | Implementing Cisco Collaboration Core Technologies (CLCOR) |
| Date: | Sep 21, 2025 |
| File Size: | 13 MB |
How to open VCEX files?
Files with VCEX extension can be opened by ProfExam Simulator.
Purchase
Coupon: TAURUSSIM_20OFF
Discount: 20%
Demo Questions
Question 1
An engineer is integrating Unity Connection with Cisco UCM. Which two actions must be configured so that recording and playback from the IP phones works at all times, including peak traffic hours? (Choose two.)
- Increase the number of voice ports.
- The phone system to which the phones are registered in Unity Connection has the Default Trap Switch check box enabled.
- Ensure that you have set up SIP Digest Authentication on the SIP trunk security profile.
- If it's a Unity Connection Cluster, ensure that replication is fine and not in split-brain mode.
- Add dedicated dial-out ports with the allow trap connections setting selected.
Correct answer: BE
Question 2
What are two Cisco UCM location bandwidths that are deducted when G.729 and G.711 codecs are used? (Choose two.)
- If a call uses G.729, Cisco UCM subtracts 16k
- If a call uses G.711, Cisco UCM subtracts 80k
- If a call uses G.729, Cisco UCM subtracts 24k
- If a call uses G.711, Cisco UCM subtracts 64k
- If a call uses G.729, Cisco UCM subtracts 40k
Correct answer: BC
Question 3

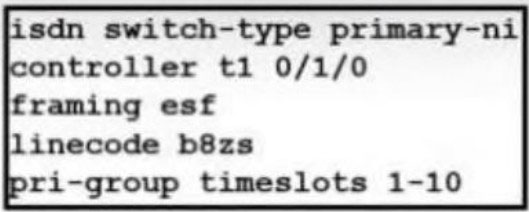

Refer to the exhibit. An engineer configures ISDN on a voice gateway. The provider confirms that the PRI is configured with 10 channels the engineer ordered and is working from the provider side, but the engineer cannot get a B-channel to carry voice. The rest of the configuration for the serial interface and voice network is functioning correctly. Which actions must be taken to carry voice?
- The engineer must activate the controller card on the voice gateway before configuring the device.
- The engineer used a T1 interface but must use an E1 interface.
- The pri-group timeslots command must be 0-9 for the 10 channels because all values on a router start with 0.
- The engineer must manually revert the order of using the channels.
Correct answer: D
Question 4
During a conference call, the CTO of a company adds an external user to the call. The CTO leaves at the end of the call, but the external user stays on and dials out to a premium rate number. Several weeks later, the CTO receives an unexpectedly nigh phone bill. The CTO decides to implement an Ad Hoc conference restriction. Which parameters must be adjusted?
- Drop Ad Hoc Conference
- Limit Ad Hoc Conference
- Restrict Ad Hoc Conference
- Monitor Ad Hoc Conference
Correct answer: A
Question 5

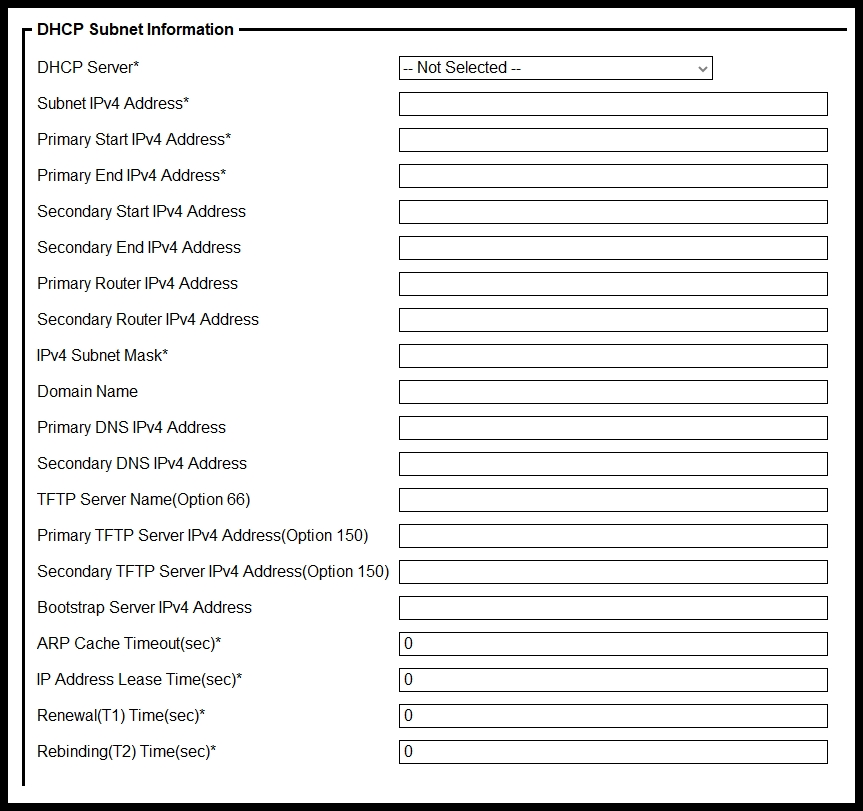

Refer to the exhibit. An engineer must configure DHCP service on the Cisco UCM. In which field must the engineer configure the server IP to provide the configuration files to the endpoints?
- Primary Router IPv4 Address
- Primary TFTP Server IPv4 Address (Option 150)
- Primary Start IPv4 Address
- Bootstrap Server IPv4 Address
Correct answer: B
Question 6

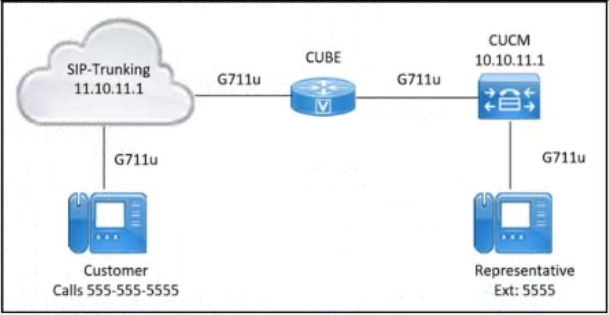

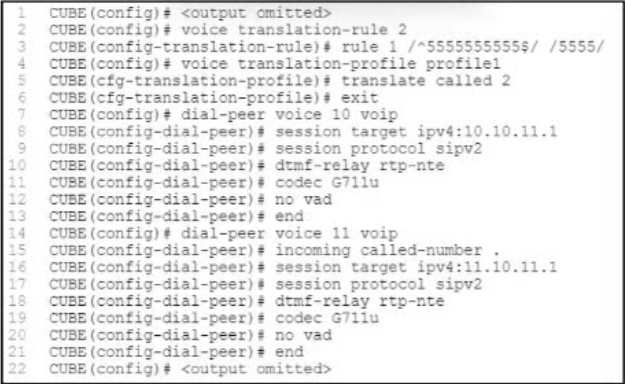

Refer to the exhibit. An engineer must deploy a Cisco Unified Border Element that will allow the last four digits of a dialed number to be sent from the Cisco Unified Border Element to Cisco UCM. The configuration in the exhibit already exists on die Cisco Unified Border Element. Which additional configuration must be performed on the Cisco Unified Border Element?
Correct answer: B
Question 7
Which two features of Cisco Prime Collaboration Assurance require advanced licensing? (Choose two.)
- customizable events
- email notifications
- multicluster support
- real time alarm browser
- call quality monitoring
Correct answer: CE
Explanation:
Reference:https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/prime-collaboration/white-paper-c11-731624.html Reference:
https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/prime-collaboration/white-paper-c11-731624.html
Question 8
Due to provider requirements, outgoing calls from the Enterprise to the PSTN must start with channel 1.
Which ISDN command changes the channel selection on IOS to meet this requirement?
- isdn bchan-number-order descending
- isdn bchan-number-order ascending
- isdn protocol-emulate network
- isdn incoming-voice voice
Correct answer: B
Question 9
Which type of greeting in the Call Handler configuration in Cisco Unity Connection overrides all other greetings?
- supervisory
- alternate
- holiday
- priority
Correct answer: B
Explanation:
Alternate -Can be used for a variety of special situations, such as vacations or a leave. An alternate greeting overrides all other greetings.Reference:https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/administration/guide/10xcucsagx/10xcucsag080.html Alternate -
Can be used for a variety of special situations, such as vacations or a leave. An alternate greeting overrides all other greetings.
Reference:
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/administration/guide/10xcucsagx/10xcucsag080.html
Question 10
A collaboration engineer adds a voice gateway to Cisco UCM. The engineer creates a new gateway device in Cisco UCM, selects VG320 as the device type, and selects MGCP as the protocol. What must be done next to add the gateway to the Cisco UCM database?
- Select a device pool for the new gateway.
- Add the FQDN or hostname of the device.
- Configure the module in slot 0 of the new gateway.
- Select the DTMF relay type for the gateway.
Correct answer: B
