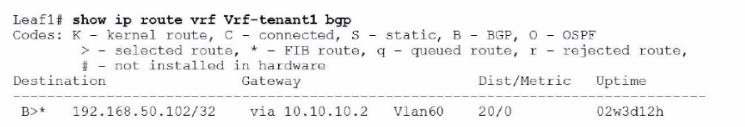

The exhibit shows a BGP EVPN route in a VXLAN environment. The route type can be determined based on the details provided. Type 2 routes in BGP EVPN are used to advertise MAC address reachability information between VTEPs (Virtual Tunnel End Points). The exhibit indicates a host route from another VTEP, which corresponds to a Type 2 route.Dell Technologies SONiC documentationBGP EVPN Configuration Guide

ECMP (Equal-Cost Multi-Path) is a Layer 3 routing feature that allows traffic to be forwarded using multiple available paths of equal cost. This improves bandwidth utilization and provides redundancy. ECMP is commonly used in modern networks to optimize the flow of traffic and increase the resiliency of network connections.Dell Technologies SONiC documentationECMP Configuration Guide

ZTP (Zero Touch Provisioning) is used to automate the configuration of switches, especially useful in scenarios where a failed unit needs to be replaced. By using ZTP, the switch can automatically download and apply the necessary configuration scripts upon boot-up, reducing the need for manual intervention and speeding up the deployment process.Dell Technologies SONiC documentationZero Touch Provisioning Guide

The write erase boot command option deletes the startup configuration and enables zero touch provisioning (ZTP). This is used to reset the switch to its default state and prepare it for automated configuration through ZTP.Dell Technologies SONiC Command Reference GuideSwitch Configuration Guide

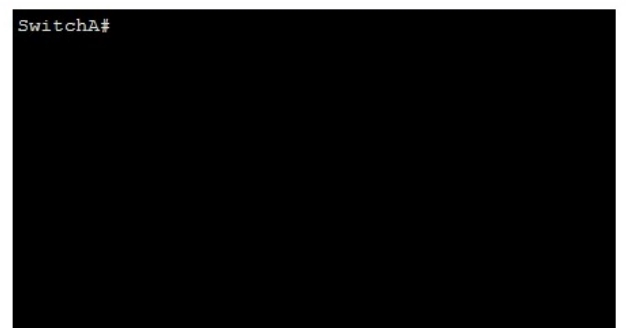

Here are the steps to create the VTEP and map the VNI to the VLAN:Enter Configuration Mode:SwitchA# configure terminalCreate VTEP Interface:SwitchA(config)# interface vtep1SwitchA(config-if-vtep1)# ip address 10.10.10.1/24SwitchA(config-if-vtep1)# exitMap VNI 400 to VLAN 40:SwitchA(config)# vlan 40SwitchA(config-vlan)# vn-segment 400SwitchA(config-vlan)# exitEnable ARP Neighbor Suppression:SwitchA(config)# interface Vlan40SwitchA(config-if-Vlan40)# ip address 192.168.40.254/24SwitchA(config-if-Vlan40)# vxlan arp-suppressionSwitchA(config-if-Vlan40)# exitSave Configuration:SwitchA# write memoryEnter Configuration Mode:Begin by entering the global configuration mode to make changes to the switch configuration.Create VTEP Interface:Enter the interface configuration mode for the VTEP interface named vtep1 using interface vtep1.Assign the IP address 10.10.10.1/24 to the VTEP interface using the ip address command.Exit the interface configuration mode.Map VNI 400 to VLAN 40:Enter the VLAN configuration mode for VLAN 40 using vlan 40.Map the VNI 400 to VLAN 40 using the vn-segment 400 command.Exit the VLAN configuration mode.Enable ARP Neighbor Suppression:Enter the interface configuration mode for VLAN 40 using interface Vlan40.Assign the anycast IP address 192.168.40.254/24 to the VLAN interface using the ip address command.Enable ARP neighbor suppression using the vxlan arp-suppression command.Exit the interface configuration mode.Save Configuration:Save the configuration to ensure the changes persist after a reboot using the write memory command.Dell Technologies Networking - SONiCDell Enterprise SONiC Deployment GuideThese steps provide a comprehensive guide to configure a VTEP and map the VNI to VLAN 40 on Switch A, ensuring the specific requirements for IP addressing and ARP neighbor suppression are met.

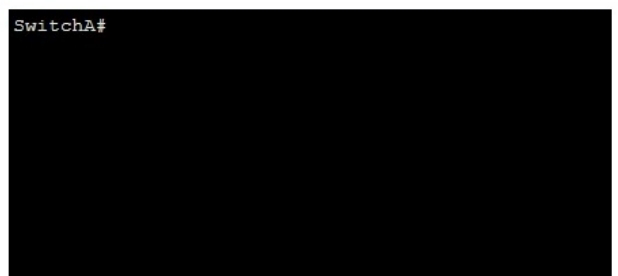

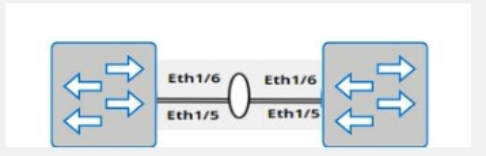

Here are the steps to configure the peer link on SwitchA:Enter Configuration Mode:SwitchA# configure terminalCreate VLAN 101:SwitchA(config)# vlan 101Create Port-Channel 100:SwitchA(config)# interface port-channel 100SwitchA(config-if-po100)# switchport mode trunkSwitchA(config-if-po100)# switchport trunk allowed vlan 101SwitchA(config-if-po100)# exitAssign Physical Interfaces to Port-Channel 100:SwitchA(config)# interface ethernet 1/5SwitchA(config-if-eth1/5)# channel-group 100 mode activeSwitchA(config-if-eth1/5)# exitSwitchA(config)# interface ethernet 1/6SwitchA(config-if-eth1/6)# channel-group 100 mode activeSwitchA(config-if-eth1/6)# exitConfigure MC-LAG Domain 1:SwitchA(config)# mclag domain 1SwitchA(config-mclag-domain)# peer-link port-channel 100SwitchA(config-mclag-domain)# local-ip 192.168.1.1SwitchA(config-mclag-domain)# peer-ip 192.168.1.2SwitchA(config-mclag-domain)# system-mac 00:00:00:11:11:11SwitchA(config-mclag-domain)# exitSave Configuration:SwitchA# write memoryComprehensive Detailed Step by Step Explanation withReference:Enter Configuration Mode:Begin by entering the global configuration mode to make changes to the switch configuration.Create VLAN 101:Create VLAN 101 to be used for the MC-LAG peer link communication.Create Port-Channel 100:Enter the port channel interface configuration mode using interface port-channel 100.Set the port channel to trunk mode with switchport mode trunk.Allow VLAN 101 on the trunk with switchport trunk allowed vlan 101.Exit the port channel interface configuration mode.Assign Physical Interfaces to Port-Channel 100:Enter interface configuration mode for ethernet 1/5 and assign it to port channel 100 using the channel-group 100 mode active command.Exit the interface configuration mode.Repeat the same steps for ethernet 1/6.Configure MC-LAG Domain 1:Enter the MC-LAG domain configuration mode using mclag domain 1.Specify the peer link port channel with peer-link port-channel 100.Configure the local IP address as 192.168.1.1 using local-ip 192.168.1.1.Configure the peer IP address as 192.168.1.2 using peer-ip 192.168.1.2.Set the MC-LAG system MAC address using system-mac 00:00:00:11:11:11.Exit the MC-LAG domain configuration mode.Save Configuration:Save the configuration to ensure the changes persist after a reboot using the write memory command.Dell Technologies Networking - SONiCDell Enterprise SONiC Deployment GuideThese steps provide a comprehensive guide to configure the peer link for an MC-LAG scenario on SwitchA, ensuring the specific requirements for IP addressing, VLAN configuration, and port channel setup are met.

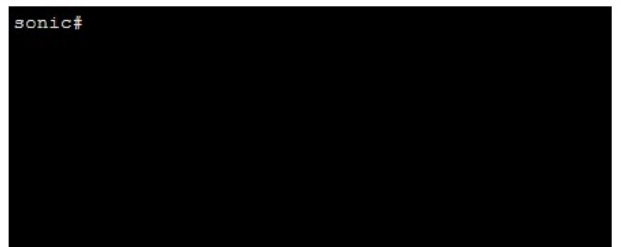

Here are the steps to configure the VRF and the static route:Enter Configuration Mode:sonic# configure terminalCreate VRF 'VrfGreen':sonic(config)# ip vrf VrfGreenConfigure the Static Route:sonic(config)# ip route vrf VrfGreen 172.16.128.64/28 10.10.10.1 213Save Configuration:sonic# write memoryComprehensive Detailed Step by Step Explanation withReference:Enter Configuration Mode:Begin by entering the global configuration mode to make changes to the switch configuration.Create VRF 'VrfGreen':Use the command ip vrf VrfGreen to create a new VRF named 'VrfGreen'. This command sets up a new VRF instance which will isolate the routing table for this VRF from the global routing table and other VRFs.Configure the Static Route:Use the command ip route vrf VrfGreen 172.16.128.64/28 10.10.10.1 213 to configure the static route.ip route vrf VrfGreen specifies that the route should be added to the 'VrfGreen' VRF.172.16.128.64/28 is the destination network.10.10.10.1 is the next-hop IP address.213 is the administrative distance, which in this case is set to a non-default value to influence route preference.Save Configuration:Save the configuration to ensure the changes persist after a reboot using the write memory command.Dell Technologies Networking - SONiCDell Enterprise SONiC Deployment GuideThese steps provide a comprehensive guide to configure a VRF and a static route within that VRF on a SONiC-based switch, ensuring the specific requirements for routing and administrative distance are met.

Configure terminalinterface ehtenet 1/1switchport access vlan 20exitDell Technologies SONiC Command Reference GuideDell Networking Configuration Guide

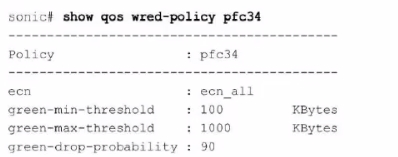

The output of the command show qos wred-policy pfc34 shows the ECN (Explicit Congestion Notification) configuration for the policy pfc34. The line ecn: ecn_all indicates that ECN is enabled for all traffic classes (all DSCP values). Additionally, the green-min-threshold, green-max-threshold, and green-drop-probability settings are shown, but there is no indication of a 10% probability for marking traffic as congested. Therefore, the correct answer is B.Dell Enterprise SONiC documentationDell Technologies InfoHub

According to the Dell SONiC documentation, a single physical port can be a member of only one port channel at a time. This restriction ensures the consistency and integrity of link aggregation configurations.Dell Networking SONiC: How to Configure Port ChannelsDell Technologies InfoHub
