Demo Questions

Question 1
An unwanted IP address tries to connect to the configuration utility via Self IP An LTM Specialist needs to block the attempts based on the IP address.
How should the ITM Specialist block the attempts without affecting other users?
  1. SSH IP allow list
  2. Port lockdown
  3. Device trust
  4. Packet filter
Correct answer: D
Question 2
An LTM Specialist is configuring a virtual server with an IP address.
Which configuration is unsupported?
  1. Performance 14 virtual server with an HTTP profile
  2. Standard virtual server with an HTTP profile
  3. Performance 14 virtual server with a FastHTTP profile
  4. Standard virtual server with a TCP profile
Correct answer: A
Question 3
A virtual server is experiencing intermittent port exhaustion. What should be done to fix this issue?
  1. add more SNAT addresses
  2. add more pool members
  3. enable advanced routing
  4. enable SNAT automap
Correct answer: A
Question 4
Refer to the exhibit

Given the bigip conf extract shown where the servers only talk http on port 80, which node will receive the next user request?
  1. 72.10.1.1
  2. 10.1.1.1
  3. 10.1.1.2 0
  4. 10.1.1.3
Correct answer: D
Question 5
An LTM Specialist is the administrator of an HA pair that contains two BIG IP units and one floating traffic group (TG1). A new project requires the creation of 30 virtual servers. The Specialist decides to create a new floating traffic group (TG2) to handle this requirement. Objects for this project created by the BIG-IP Managers must appears in the correct traffic group.
Which configuration should the LTM Specialist use to meet the requirement?
  1. Move the BIG-IP Managers from TG1 to TG2
  2. Create a new partition and set the default traffic group to TG2
  3. Modify the default traffic group of the Common partition to TG2
  4. Restrict the Traffic Group Access of BIG-I Managers to TG2
Correct answer: B
Question 6
Refer to the exhibit.


The pool shown is configured with four pool members in a variety of states. The application is receiving a large number of request. The LTM Specialist needs to make changes to make sure that all members receive the same levels of traffic.
Which changes need to be made?
  1. Enable 10.80.1.40 disable priority group activation, enable ratio
  2. Enable 10.80.1.40 and 10.80.1.1.20 disable group activation, enable Round Robin
  3. Enable 10.80.1.20 disable priority group activation, enable Round Robin
  4. Enable 10.80.1.40 and 10.80.1.20 disable priority group activation, enable ratio.
Correct answer: B
Question 7
A new iRule needs to be tested. The LTM Specialist needs to measure page load times and monitor potential changes in memory usage A load test is scheduled.
Which two features should the LTM Specialist use to monitor these requirements? (Choose two.)
  1. Tmsh show memory
  2. Analytics
  3. Tmsh show sys proc-info
  4. Tmsh show sys provision
Correct answer: BC
Explanation:
Need to detect memory changes in real time, use to Page load times with Analytics profile
Need to detect memory changes in real time, use to Page load times with Analytics profile
Question 8
A web developer needs a virtual server configured for an application.
The application details are as follows:
Application is accessed on port 443.
The application traffic is encrypted by the server.
HTTP is not being used. No data manipulation is necessary.
Throughput is critical.
NO connections are terminated on the LTM.
Which configuration provides the best performance?

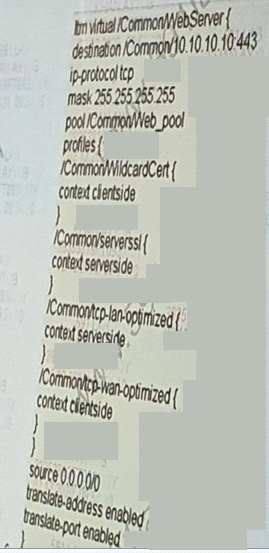

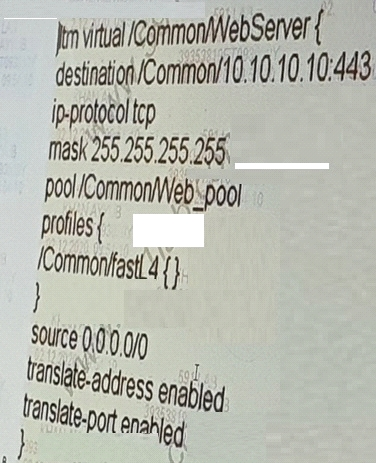

  1.
  2.
  3.
  4.
Correct answer: B
Question 9
RADIUS authentication has been configured on the LTM device. The default remote user access requirements are as shown:
Read only access to the configuration Utility
Access to TMOS shell
Which two items need to be configured in this situation? (Choose two)
  1. Console access is Advanced Shell
  2. Console access is Read Only
  3. Default remote user role is Guest
  4. In Console access is TMSH
  5. Default remote user role is Manager
  6. Default remote user role is Operator
Correct answer: BD
Question 10
What should an LTM Specialist configure on an LTM device to send AVR notification emails?
  1. Email notification to be sent via iControl from the LTM device
  2. Syslog on the LTM device to send to an SMTP server
  3. Custom SNMP traps on the LTM device for AVR notifications
  4. Email notification to be sent via SMTP from the LTM device
Correct answer: D
