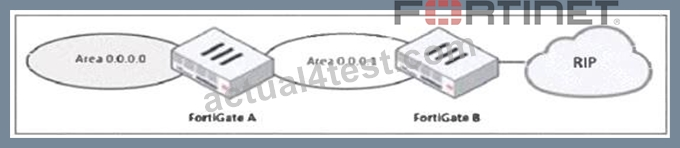

The diagram shows amulti-area OSPF networkwhere:#FortiGate Ais inOSPF Area 0 (Backbone area).#FortiGate Bis inOSPF Area 0.0.0.1and is connected to anRIP network.To ensure thatOSPF Area 0 (0.0.0.0) learns routes from the external RIP network, FortiGate B must redistribute RIP routes into OSPF.Steps to achieve this:1.Enable route redistribution on FortiGate Bto inject RIP-learned routes into OSPF.2. This allows OSPFArea 0.0.0.1to forward RIP routes toOSPF Area 0 (0.0.0.0), making the external network visible.

In an IBGP (Internal BGP) network, all routers must be fully meshed, meaning every router must establish a BGP session with every other router in the same autonomous system (AS). This does not scale well in large networks due to the exponential increase in BGP sessions.To optimize and scale IBGP, Route Reflectors (RRs) are used. A Route Reflector (RR) reduces the number of IBGP peer connections by allowing a centralized router (RR) to redistribute IBGP routes to other IBGP peers (called clients). This eliminates the need for a full mesh, significantly reducing BGP session overhead.By configuring the route-reflector-client setting on IBGP peers, an administrator can:Scale IBGP sessions by reducing the number of direct BGP peer connections. Optimize the routing table by ensuring routes are efficiently propagated within the IBGP network. Eliminate the need for full mesh topology, making IBGP more manageable.

The Internet Service Database (ISDB) in FortiGate is used to enforce content filtering at Layer 3 (Network Layer) and Layer 4 (Transport Layer) of the OSI model by identifying applications based on their predefined IP addresses and ports.FortiGate has a predefined list of all IPs and ports for specific applications downloaded from FortiGuard:FortiGate retrieves and updates a predefined list of IPs and ports for different internet services from FortiGuard.This allows FortiGate to block specific services at Layer 3 and Layer 4 without requiring deep packet inspection.The ISDB blocks the IP addresses and ports of an application predefined by FortiGuard:ISDB works by matching traffic to known IP addresses and ports of categorized services. When an application or service is blocked, FortiGate prevents communication by denying traffic based on its destination IP and port number.

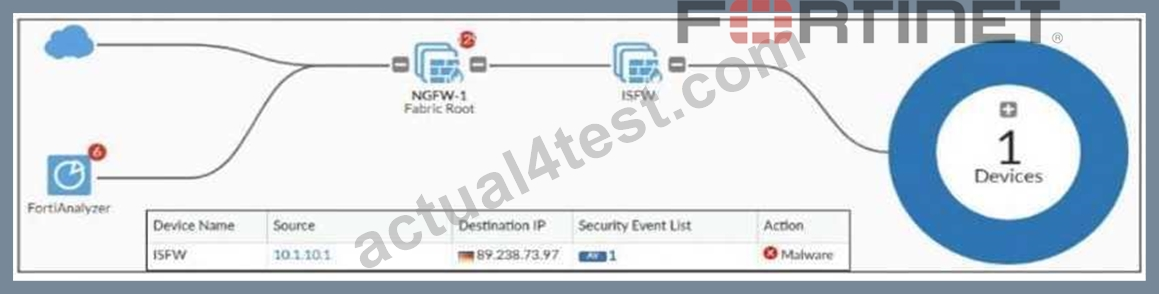

From the exhibit, ISFW is part of a Security Fabric environment with NGFW-1 as the Fabric Root. In this architecture, FortiGate devices share security intelligence, including logs and detected threats.ISFW is in a Security Fabric environment:# Security Fabric allows devices like ISFW toreceive threat intelligencefrom NGFW-1, even if UTM is not enabled locally.# If NGFW-1 detects malware fromIP 10.1.10.1 to 89.238.73.97, this information can bepropagated to ISFW and FortiAnalyzer.The firewall policy in NGFW-1 has UTM enabled:# Even thoughISFW does not have UTM enabled, NGFW-1 (which sits between ISFW and the external network)does have UTM enabledand is scanning traffic.# Since NGFW-1 detects malware in the session, it logs the event, which is then sent toFortiAnalyzer.

In ADVPN (Auto-Discovery VPN) configurations, security concerns include protecting peer IDs during VPN establishment. Peer IDs are exchanged in the IKE (Internet Key Exchange) negotiation phase, and their exposure could lead to privacy risks or targeted attacks. IKEv2 encrypts peer IDs, making it more secure compared to IKEv1, where peer IDs can be exposed in plaintext in aggressive mode.IKEv2 also provides better performance and flexibility while supporting dynamic tunnel establishment in ADVPN.
