Demo Questions

Question 1

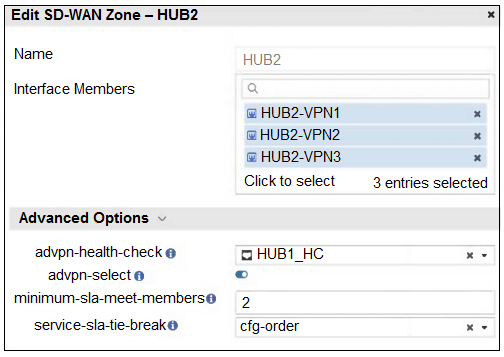

Refer to the exhibit that shows an SD-WAN zone configuration on the FortiManager GUI.
Based on the exhibit, how will the FortiGate device behave after it receives this configuration?
  1. The configuration instructs FortiGate to choose an ADVPN shortcut based on SD-WAN information.
  2. The configuration instructs FortiGate to allow ADVPN shortcuts for the tunnels of this SD-WAN zone.
  3. The configuration instructs FortiGate to establish shortcuts only when at least two members meet the SLA target.
  4. The configuration instructs FortiGate to establish shortcuts only for overlay interfaces that meet the SLA target HUB1_HC.
Correct answer: C
Explanation:
C: 1
C: 1
Question 2
Refer to the exhibits.

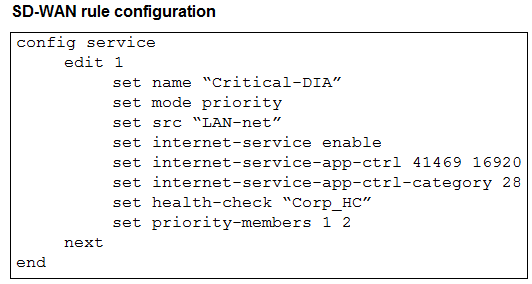

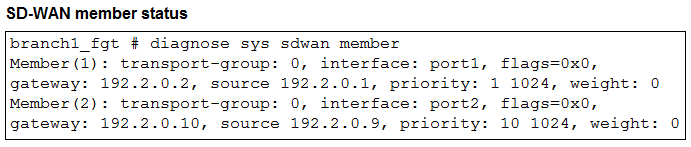

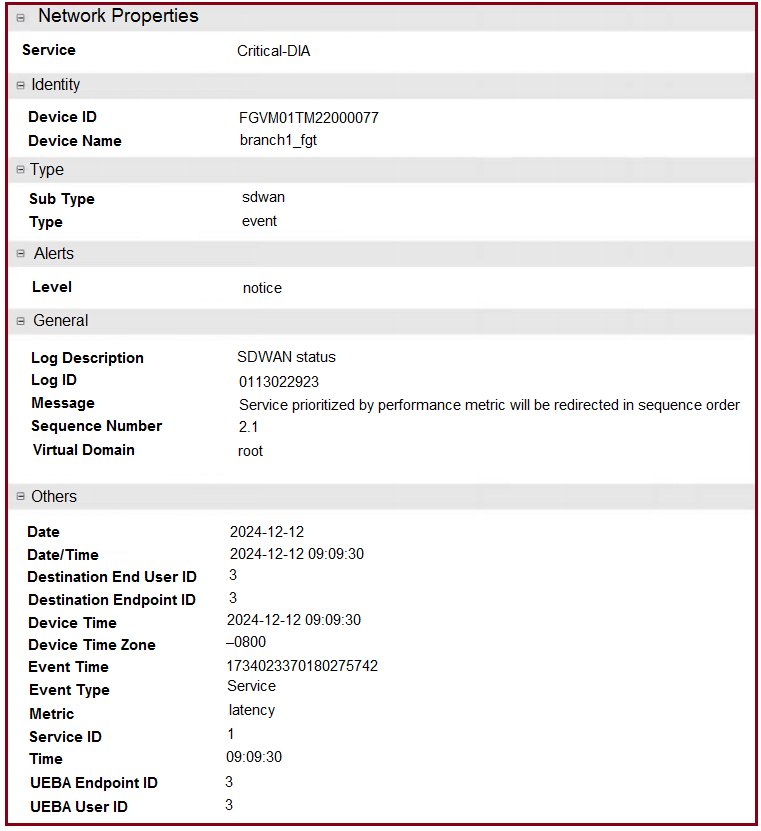

The exhibits show an SD-WAN event log, the member status, and the SD-WAN rule configuration.
Which two conclusions can you draw from the information shown? (Choose two.)
  1. The administrator configured the service ID 1 with the highest priority member for port2.
  2. Port2 has a lower latency than port1.
  3. FortiGate updated the outgoing interface list on the rule so it prefers port2.
  4. The administrator configured the SD-WAN rule ID 1 with the default strategy mode.
Correct answer: BC
Explanation:
BC: 1
BC: 1
Question 3
Refer to the exhibit.

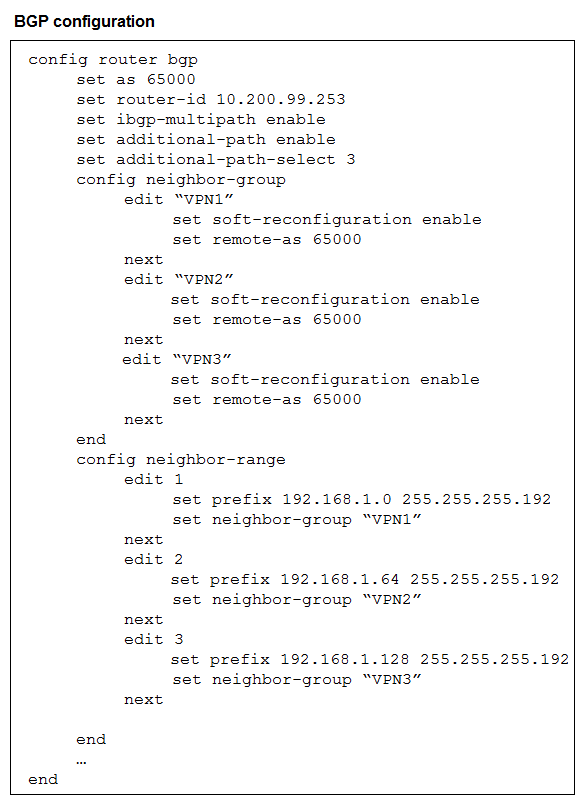

The exhibit shows the BGP configuration on the hub in a hub-and-spoke topology. The administrator wants BGP to advertise prefixes from spokes to other spokes over the IPsec overlays, including additional paths. However, when looking at the spoke routing table, the administrator does not see the prefixes from other spokes and the additional paths
Which three settings must the administrator configure inside each BGP neighbor group so spokes can learn the prefixes of other spokes and their additional paths? (Choose three.)
  1. Set additional-path to send
  2. Set additional-path to forward
  3. Enable route-reflector-server
  4. Enable route-reflector-client.
  5. Set adv-additional-path to the number of additional paths to advertise.
Correct answer: ADE
Explanation:
ADE: 3 - Mosted
ADE: 3 - Mosted
Question 4
Refer to the exhibits.

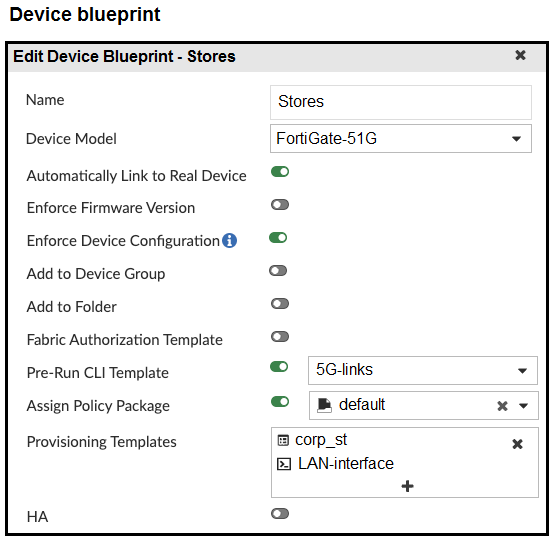

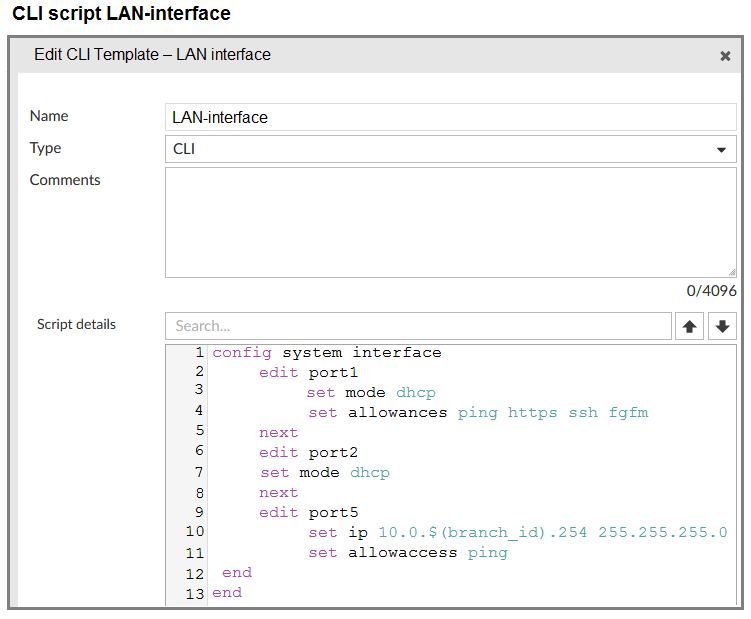

The administrator configured a device blueprint and CLI scripts as shown in the exhibits, to prepare for onboarding FortiGate devices in the company’s stores. Later, a technician prepares a FortiGate 51G with a basic configuration and connects it to the network. The basic configuration contains the port1 configuration and the minimal configuration required to allow the device to connect to FortiManager.
After the device first connects to FortiManager, FortiManager updates the device configuration.
Based on the exhibits, which actions does FortiManager perform?
  1. FortiManager updates the device configuration according to the selected templates. It applies the corp_st template first.
  2. FortiManager does not update the port1 configuration because FortiManager does not change the configuration of interfaces with fgfm access.
  3. FortiManager updates access rights only for port1. FortiManager cannot update the IP address because it was already set manually.
  4. FortiManager updates the configuration of port1, port2, and port5. The three ports might get new IP addresses.
Correct answer: D
Explanation:
D: 1 - Mosted
D: 1 - Mosted
Question 5
Refer to the exhibits.
You use FortiManager to configure SD-WAN on three branch devices.

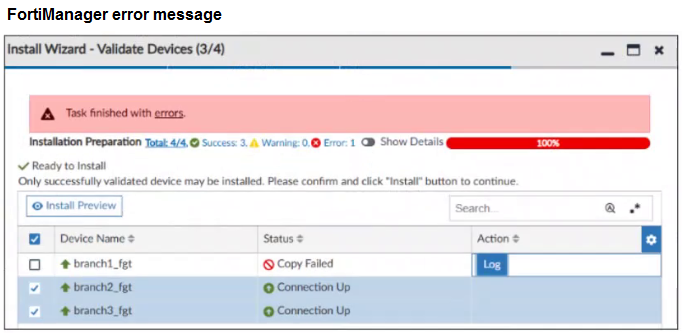

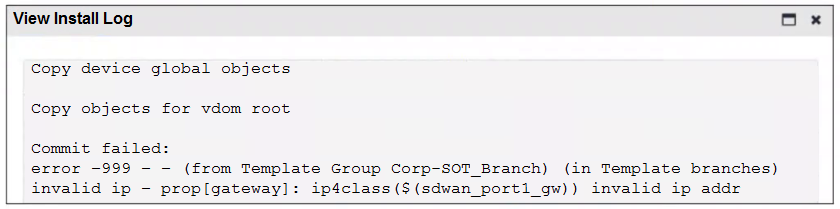

When you install the device settings, FortiManager prompts you with the error “Copy Failed” for the device branch1_fgt. When you click the log button, FortiManager displays the message shown in the exhibit.
There are two different ways to resolve this issue. Based on the exhibits, which methods could you use? (Choose two.)
  1. Update the management IP address of branch1_fgt.
  2. Specify the gateway of the SD-WAN member port1 with an IP address or use the default value.
  3. Do not define installation targets for SD-WAN members.
  4. Review the per-device mapping configuration for metadata variables
Correct answer: BD
Explanation:
BD: 2
BD: 2
Question 6
You used the HUB IPsec_Recommended and the BRANCH IPsec_Recommended templates to define the overlay topology. Then, you used the SD-WAN template to define the SD- WAN members, rules, and performance SLAs.
You applied the changes to the devices and want to use the FortiManager monitors menu to get a graphical view that shows the status of each SD-WAN member.
Which statement best explains how to obtain this graphical view?
  1. Use the SD-WAN monitor template view to get a map view of the branches, hub, and tunnel status, including the SLA pass or missed status.
  2. Use the SD-WAN monitor table view to get a donut view and a table view that shows the status of each SD-WAN member, including the SLA pass or missed status.
  3. Use the VPN monitor map view to get a map view of the branches, hub, and tunnel status, including the SLA pass or missed status.
  4. Use the SD-WAN monitor asset view to get a donut view and a table view that shows the status of each device and the SLA status of each SD-WAN member.
Correct answer: B
Explanation:
B: 2 - Mosted
B: 2 - Mosted
Question 7
Refer to the exhibits.

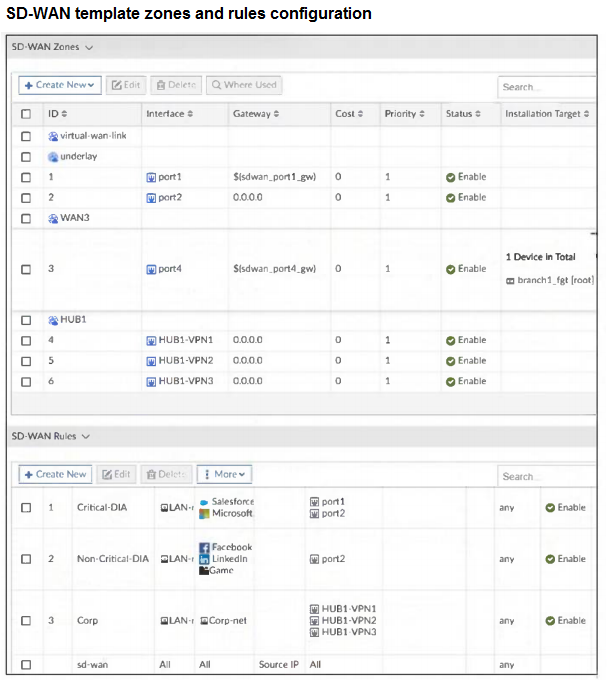

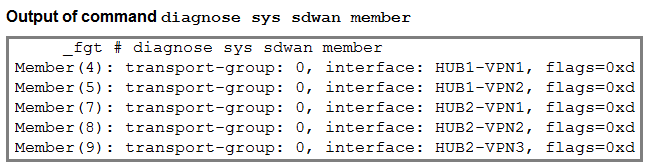

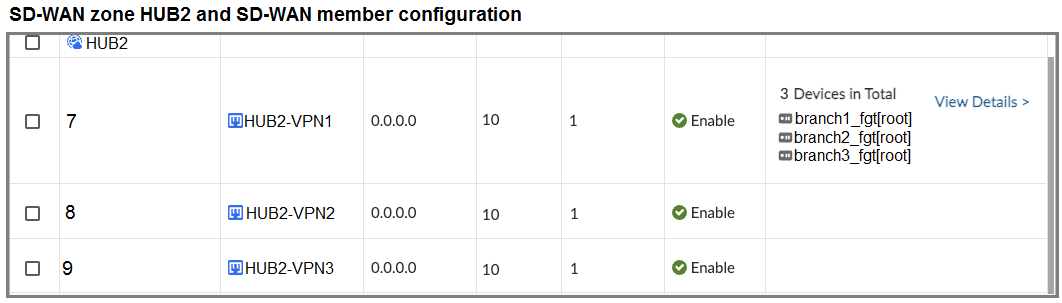

The first exhibit shows the SD-WAN zone HUB1 and SD-WAN member configuration from an SD-WAN template, and the second exhibit shows the output of command diagnose sys sdwan member collected on a FortiGate device.
Which statement best describes what the diagnose output shows?
  1. The diagnose output shows that HUB1-VPN1 and all HUBx-VPNy members are dead.
  2. The diagnose output does not correspond to a device configured with the SD-WAN template shown in the exhibit.
  3. The diagnose output was collected on the device branch2_fgt.
  4. The diagnose output was collected on the device branch1_fgt
Correct answer: D
Explanation:
B: 1D: 5 - Mosted
B: 1D: 5 - Mosted
Question 8

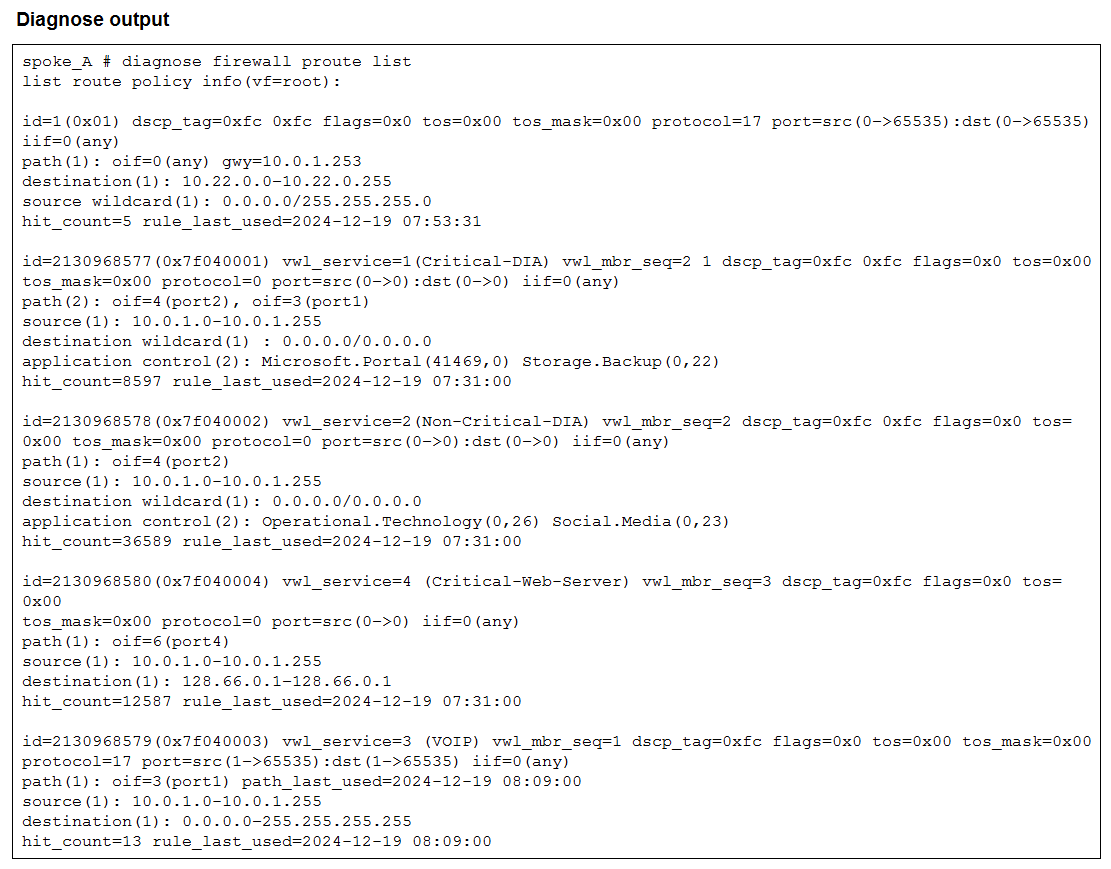

Refer to the exhibit.
Which two conclusions can you draw from the output shown? (Choose two.)
  1. One SD-WAN rule is defined with application categories as the destination.
  2. UDP traffic destined to the subnet 10.22.0.0/24 matches a manual SD-WAN rule.
  3. One SD-WAN rule allows traffic load balancing.
  4. UDP traffic destined to the subnet 10.22.0.0/24 matches a policy route.
Correct answer: CD
Explanation:
CD: 5 - Mosted
CD: 5 - Mosted
Question 9

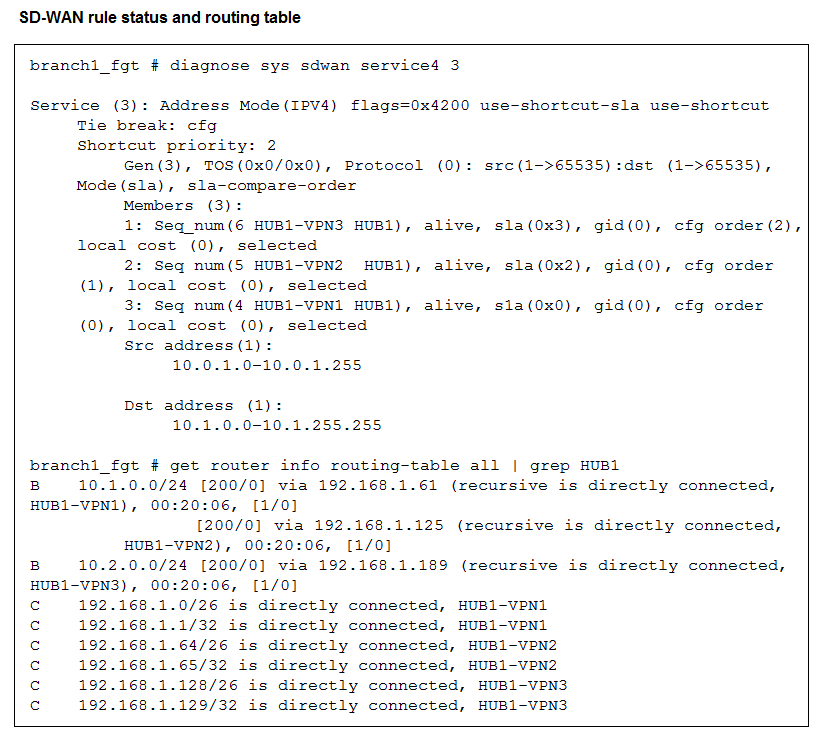

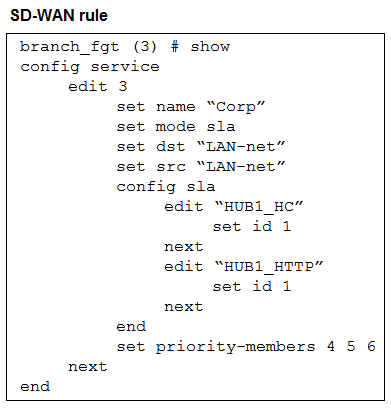

Refer to the exhibits, which show the configuration of an SD-WAN rule and the corresponding rule status and routing table.
The administrator wants to understand the expected behavior for traffic matching the SD-WAN rule.
Based on the exhibits, what can the administrator expect for traffic matching the SD-WAN rule?
  1. The traffic will be routed over HUB1-VPN3.
  2. The traffic will be routed over HUB1-VPN2
  3. The traffic will be routed over HUB1-VPN1.
  4. The traffic will be load balanced across all three overlays
Correct answer: B
Explanation:
A: 1B: 10 - MostedC: 1
A: 1B: 10 - MostedC: 1
Question 10
As an IT manager for a healthcare company, you want to delegate the installation and management of your SD-WAN deployment to a managed security service provider (MSSP). Each site must maintain direct internet access and ensure that it is secure. You expected significant traffic flow between the sites and want to delegate as much of the network administration and management as possible to the MSSP.
Which two MSSP deployment blueprints best address the customer’s requirements? (Choose two.)
  1. Use a shared hub at the MSSP premises with a dedicated VDOM for the new customer, and install the spokes at the customer premises.
  2. Use a shared hub at the MSSP premises and a dedicated hub at the customer premises and install the spokes at the customer premises.
  3. Install a dedicated hub at the MSSP premises for the new customer, and install the spokes at the customer premises.
  4. Install the hub and spokes at the customer premises and enable the MSSP to manage the SD-WAN deployment using FortiManager with a dedicated ADOM.
Correct answer: AC
Explanation:
AC: 1 - Mosted
AC: 1 - Mosted
