Demo Questions
Question 1

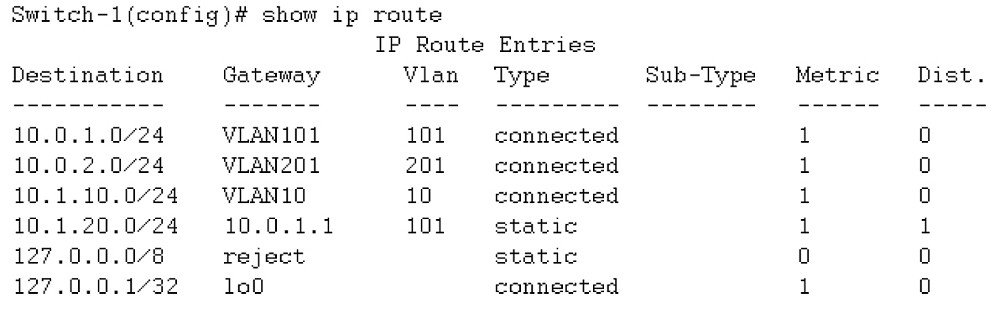

Exhibit1.

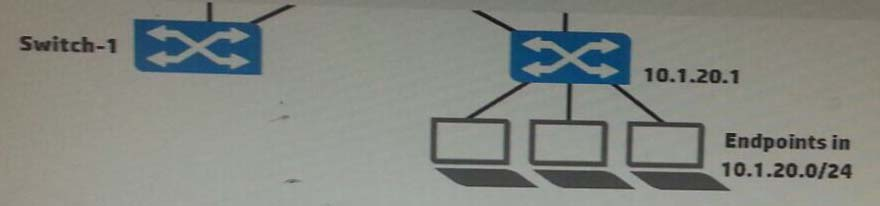

Exhibit 2 -
A network administrator wants to create a backup IP route to 10.1.20.0/24 on Switch-1. The backup route should use Link 2, and it should only be used if Link 1 is down. What is the correct setup to accomplish this?
- an IP route through 10.0.2.2 with administrative distance 1
- an IP route through 10.1.20.1 with administrative distance 1
- an IP route through 10.0.2.2 with administrative distance 10
- an IP route through 10.1.20.1 with administrative distance 10
Correct answer: D
Question 2

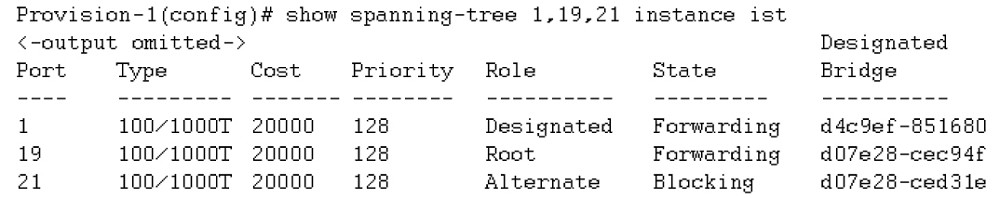

Refer to the exhibit.
This switch currently assigns all VLANs to Multiple Spanning Tree Protocol (MSTP) instance 0 or the Internal Spanning Tree (IST). Which statement correctly describes interface 21?
- The interface is down at Layer 2; it is not available for sending or receiving any traffic.
- The interface is an edge port but has received Bridge Protocol Data Units (BPDUs), so it is disabled.
- The interface does not forward or accept data traffic, but it is ready to start forwarding if interface 19 fails.
- The interface does not support spanning tree; it is possible that it will introduce a loop in the network.
Correct answer: B
Question 3
address?
- the IP address on the local interface that is used to egress traffic towards its destination
- the lowest IP address on the neighboring router in the path towards its destination
- the IP address on the connected interface of a neighboring router in the path towards its destination
- the IP address of the default gateway in the destination subnet
Correct answer: C
Question 4
Which privilege level would a network administrator use to configure an HP ProVision switch?
- Super
- User
- Manager
- Administrator
Correct answer: C
Question 5
A company has a policy that requires all administrators to use secure access for in-band management. The administrator sets up SSH access on the HP
Comware switches in the network to meet this requirement. The administrator enables SSH, and creates SSH keys and administrator accounts on the Comware switches. Every time the administrator attempts to log in to the switches the SSH access is denied. The VTYs are configured as: user-interface vty 0 15 authentication-mode password user privilege level 3 quit
What is the correct authentication mode the administrator must configure on the VTYs of the Comware switch so the switch prompts for usernames and passwords?
- username
- aaa
- scheme
- local
Correct answer: C
Question 6
What is true about the community string used for SNMPv1 and SNMPv2c?
- The community string encrypts the SNMP message, but does not hash it, providing for data privacy.
- The community string hashes the SNMP message, but does not encrypt it, providing for data integrity.
- The community string encrypts and hashes the SNMP message, providing for data integrity and privacy.
- The community string is like a password transmitted in cleartext, providing no data integrity or privacy.
Correct answer: D
Question 7
A network administrator wants to join a switch to an Intelligent Resilient Framework (IRF) virtual device. The administrator changes the switch member ID from 1 to
2. What must the administrator do before configuring the IRF port on this switch?
- Physically connect the switch to the IRF master device.
- Reboot the switch.
- Disable IP routing.
- Enable the physical interfaces that will be assigned to the IRF port.
Correct answer: D
Question 8
A network administrator examines an HP Comware switch that is configured to route packets between VLANs. The switch is configured with multiple routing protocols. All routing protocols have learned of the same destination network. All routing protocols use the default administrative distances.
Which routing protocol does the switch select for the destination network?
- EIGRP
- Indirect
- OSPF
- Static route
Correct answer: C
Question 9

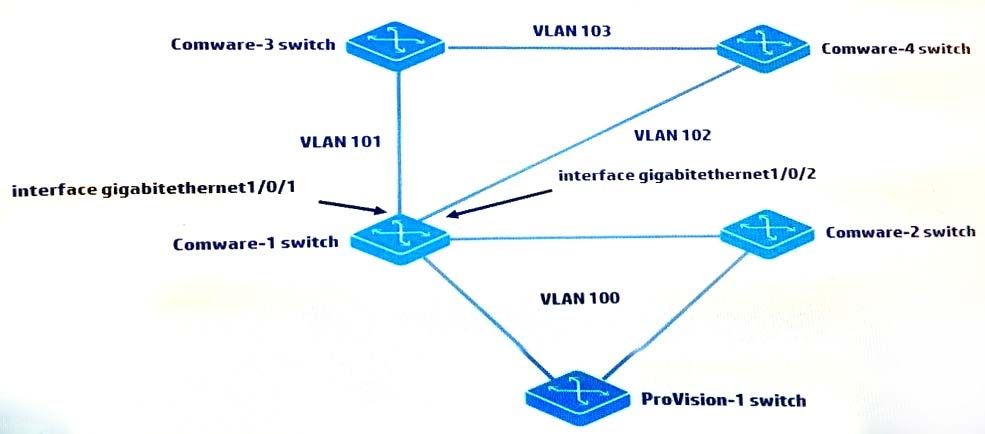

Refer to the exhibit.
MSTP is configured on all switches shown in the exhibit. The Comware-1, Comware-3, and Comware-4 switches are set up for OSPF. Comware-1 and Comware-
4 switches fail to achieve neighbor adjacency. The network administrator analyzes the issue and determines that MSTP is blocking on port gigabitethernet1/0/2 on
Comware-1.
Which configuration should the administrator configure on ports g1/0/1 and g1/0/2 to allow Comware-1 to form the correct OSPF adjacencies with Comware-3 and
Comware-4?
- interface g1/0/1 spanning-tree bpdu-filter quit interface g1/0/2 spanning-tree bpdu-filter quit
- interface g1/0/1 undo stp enable quit interface g1/0/2 undo stp enable quit
- interface g1/0/1 stp link-mode route quit interface g1/0/2 stp link-mode route quit
- interface g1/0/1 stp bpdu-filter quit interface g1/0/2 stp bpdu-filter quit
Correct answer: A
Question 10
A network administrator plans to execute show commands as well as make conjuration changes. Which HP ProVision privilege role must be assigned to an account for the administrator to do this?
- Operator
- Administrator
- Superuser
- Manager
Correct answer: D
Question 11
A customer purchases HP Intelligent Management Center (IMC) to help manage their network. The customer needs access to real-time and historical data about users and applications that consume bandwidth. Which IMC module should the customer purchase?
- NTA
- WSM
- UAM
- EAD
Correct answer: A
