Download Aruba Certified Network Security Expert Written.HPE6-A84.VCEplus.2023-09-18.19q.vcex

DNS tunneling is a technique that abuses the DNS protocol to tunnel data or commands between a compromised host and an attacker's server. DNS tunneling can be used to establish a command and control channel, which allows the attacker to remotely control the malware or exfiltrate data from the infected host1 The traffic capture in the exhibit shows some signs of DNS tunneling. The source IP address is 10.1.7.2, which is likely an internal host behind a firewall. The destination IP address is 8.8.8.8, which is a public DNS resolver. The DNS queries are for subdomains of badsite.com, which is likely a malicious domain registered by the attacker. The subdomains have long and random names, such as 0x2a0x2a0x2a0x2a0x2a0x2a0x2a0x2a.badsite.com, which could be used to encode data or commands. The DNS responses have large sizes, such as 512 bytes, which could be used to carry data or commands back to the host2

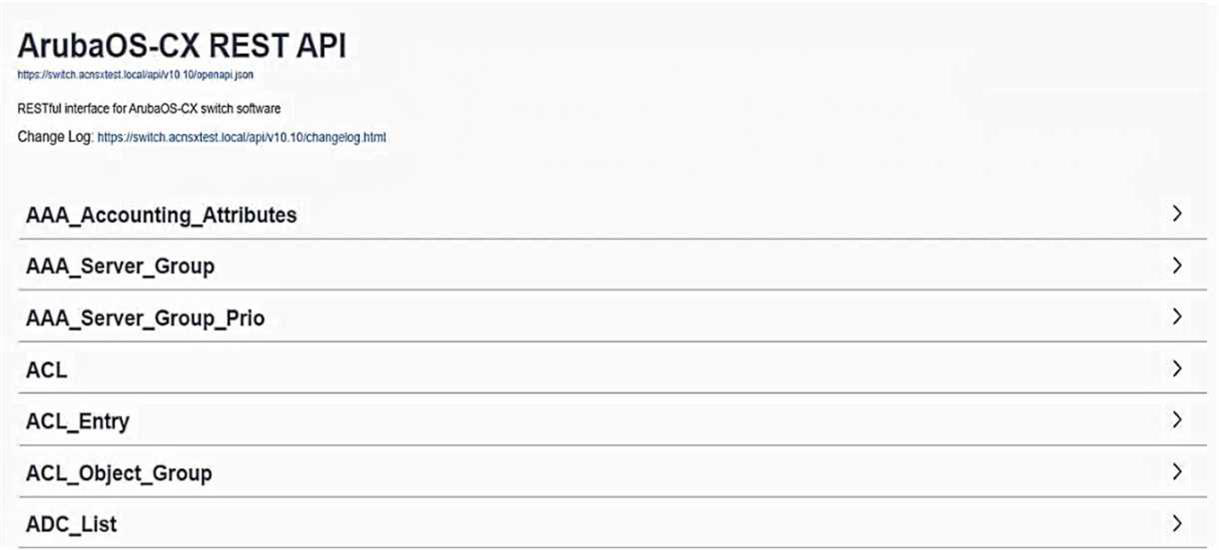

The exhibit shows the ArubaOS-CX REST API documentation interface, which allows you to explore the available resources and try out the API calls using the "Try it out" button. However, before you can use this feature, you need to authenticate yourself with your Aruba passport account and collect a token that will be used for subsequent requests. This token will expire after a certain time, so you need to refresh it periodically. You can find more details about how to use the documentation interface and collect a token in the ArubaOS-CX REST API Guide1.

Aruba Central can provide visibility and profiling of clients using the Client Insights feature, which is an AI-powered solution that uses native infrastructure telemetry to identify and classify clients based on their OS and general category. This feature does not require any additional hardware or software, such as gateways, IP helpers, or packet sniffers. It works by collecting and analyzing data from the Aruba APs and AOS-CX switches that are managed by Aruba Central. You can find more information about Client Insights in the Visibility and profiling solutions | HPE Aruba Networking page and the Clients Profile - Aruba page.

A profile conflict occurs when ClearPass Policy Manager (CPPM) detects a change in the device category or OS family of an endpoint that has been previously profiled. This could indicate that someone has spoofed the MAC address of a legitimate device and is trying to gain unauthorized access to the network. For example, if an endpoint that was previously profiled as a Printer suddenly shows a new profile of Computer, this could be a sign of an attack. You can find more information about profile conflicts and how to resolve them in the ClearPass Policy Manager User Guide1. The other options are not necessarily signs of unauthorized access, as they could have other explanations. For example, multiple DHCP options under the fingerprints could indicate that the device has connected to different networks or subnets, an Unknown status could indicate that the device has not been authenticated yet, and a lack of hostname or a random hostname could indicate that the device has not been configured properly or has been reset to factory settings.

Auto-site clustering is a feature that allows gateways in the same site and group to form a cluster automatically. However, this mode does not support VRRP IP addresses, which are required for dynamic authorization (CoA) from ClearPass Policy Manager (CPPM) to the gateways. Dynamic authorization is a mechanism that allows CPPM to change the attributes or status of a client session on the gateways without requiring re-authentication. This is useful for applying policies, roles, or bandwidth limits based on various conditions. Without VRRP IP addresses, CPPM would not be able to send CoA messages to the correct gateway in case of a failover event, resulting in inconsistent or incorrect client behavior.To enable VRRP IP addresses for dynamic authorization, you need to set up gateway clusters manually and assign a VRRP VLAN and a VRRP IP address to each cluster. This way, CPPM can use the VRRP IP address as the NAS IP address for RADIUS communications and CoA messages. The VRRP IP address will remain the same even if the active gateway in the cluster changes due to a failover event, ensuring seamless operations.You can find more information about how to set up gateway clusters manually and configure VRRP IP addresses in the Gateway Cluster Deployment - Aruba page and the ClearPass Policy Manager User Guide1.

ClearPass Policy Manager (CPPM) requires network device entries for the devices that communicate with it using RADIUS or TACACS+ protocols. In this scenario, the gateways are the devices that act as RADIUS clients and send authentication requests to CPPM for the WLAN users. Therefore, CPPM needs to have network device entries for the gateways' actual IP addresses and the shared secrets that match the ones configured on the gateways.Additionally, CPPM also requires network device entries for the gateways' dynamic authorization VRRP addresses, which are used for sending CoA messages to the gateways. CoA messages are used to change the attributes or status of a user session on the gateways without requiring reauthentication.For example, CPPM can use CoA to apply policies, roles, or bandwidth limits based on various conditions. To enable VRRP IP addresses for dynamic authorization, you need to set up gateway clusters manually and assign a VRRP VLAN and a VRRP IP address to each cluster. This way, CPPM can use the VRRP IP address as the NAS IP address for RADIUS communications and CoA messages. The VRRP IP address will remain the same even if the active gateway in the cluster changes due to a failover event, ensuring seamless operations.

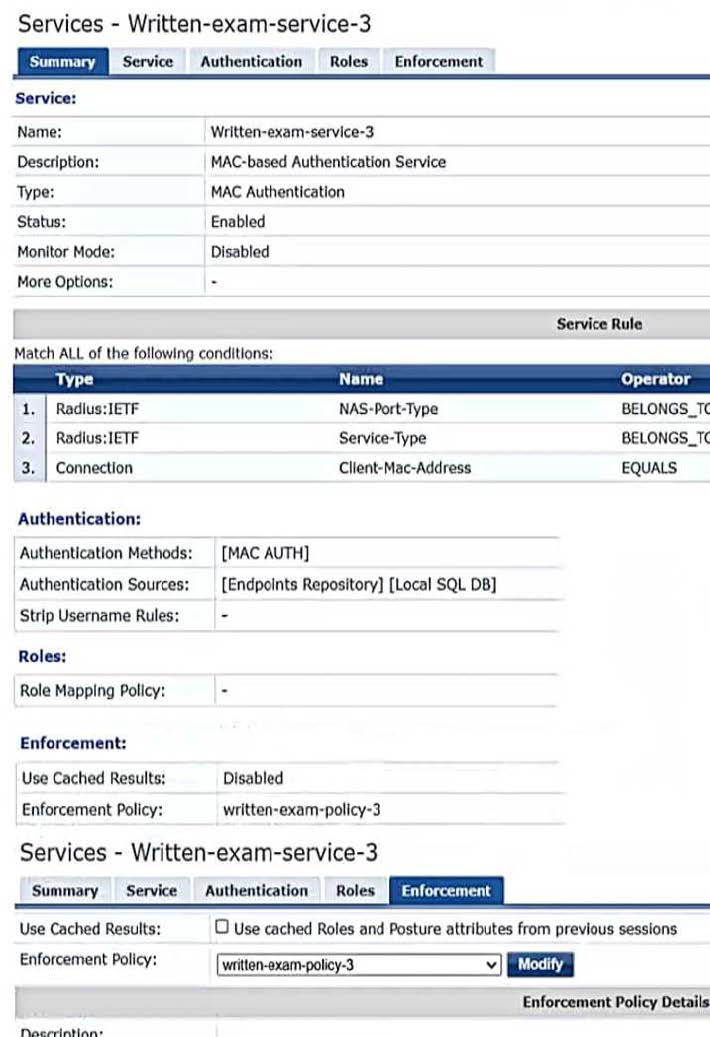

MAC Authentication Bypass (MAB) is a technique that allows non-802.1X-capable devices to bypass the 802.1X authentication process and gain network access based on their MAC addresses. However, MAB has some security drawbacks, such as the possibility of MAC address spoofing or unauthorized devices being added to the network. Therefore, it is recommended to use a custom MAC-Auth authentication method that adds an additional layer of security to MAB.A custom MAC-Auth authentication method is a method that uses a combination of the MAC address and another attribute, such as a username, password, or certificate, to authenticate the device. This way, the device needs to provide both the MAC address and the additional attribute to gain access, making it harder for an attacker to spoof or impersonate the device. A custom MAC-Auth authentication method can be created and configured in ClearPass Policy Manager (CPPM) by following the steps in the Customizing MAC Authentication - Aruba page.

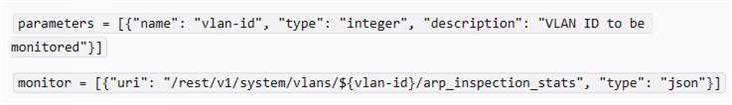

A custom NAE script is a Python script that defines the monitors, the alert-trigger logic, and the remedial actions for an NAE agent. A monitor is a URI that specifies the data source and the data type that the NAE agent should collect and analyze. For example, to monitor the ARP inspection statistics on a VLAN, the monitor URI would be something like this: where <vlan-id> is the ID of the VLAN to be monitored.To allow the admins to select the correct VLAN ID for the agent to monitor when they create the agent, you need to define a VLAN ID parameter in the NAE script. A parameter is a variable that can be set by the user when creating or modifying an agent. A parameter can be referenced in other parts of the script by using the syntax ${parameter-name}. For example, to define a VLAN ID parameter and reference it in the monitor URI, you would write something like this:   This way, when the admins create or modify the agent, they can enter the VLAN ID that they want to monitor, and the NAE script will use that value in the monitor URI.You can find more information about how to write custom NAE scripts and use parameters in the NAE Scripting Guide

The exhibit shows a screenshot of a Malwarebytes alert that indicates that a website was blocked due to compromise. The alert contains the following information:The type of protection: Web ProtectionThe website that was blocked: 10.254.1.21The port that was used: 80The process that initiated the connection: C:\Program Files (x86)\Google\Chrome\Application\chrome.exeThe IP address of the device that initiated the connection: 10.1.26.151The IP address of the device that initiated the connection is the one that should be recorded as a possibly compromised client, as it indicates that the device tried to access a malicious website that could infect it with malware or steal its data. In this case, the IP address of the possibly compromised client is 10.1.26.151.

A DNS SAN (Subject Alternative Name) is an extension of the X.509 certificate standard that allows specifying additional hostnames or IP addresses that the certificate can be used for. A DNS SAN is useful for validating the identity of the server or client that presents the certificate, especially when the common name (CN) field does not match the hostname or IP address of the server or client.In this case, the certificate has a CN of mc41.site94.example.com, which is the fully qualified domain name (FQDN) of the standalone Aruba Mobility Controller (MC). However, this CN may not match the hostname or IP address that the MC uses for the Web UI or for implementing RadSec with Aruba ClearPass Policy Manager. For example, if the MC uses a different FQDN, such as mc41.example.com, or an IP address, such as 192.168.1.41, for these purposes, then the certificate would not be valid for them. Therefore, the certificate should have a DNS SAN that includes all the possible hostnames or IP addresses that the MC may use for the Web UI and RadSec.
