Question 1
You want to ensure that L1 IS-IS routers have only the most specific routes available from L2 IS-IS routers.
Which action accomplishes this task?
  1. Configure the ignore-attached-bit parameter on all L1 routers.
  2. Configure all routers to be L1.
  3. Configure all routers to allow wide metrics.
  4. Configure the ignore-attached-bit parameter on all L2 routers.
Correct answer: A
Question 2

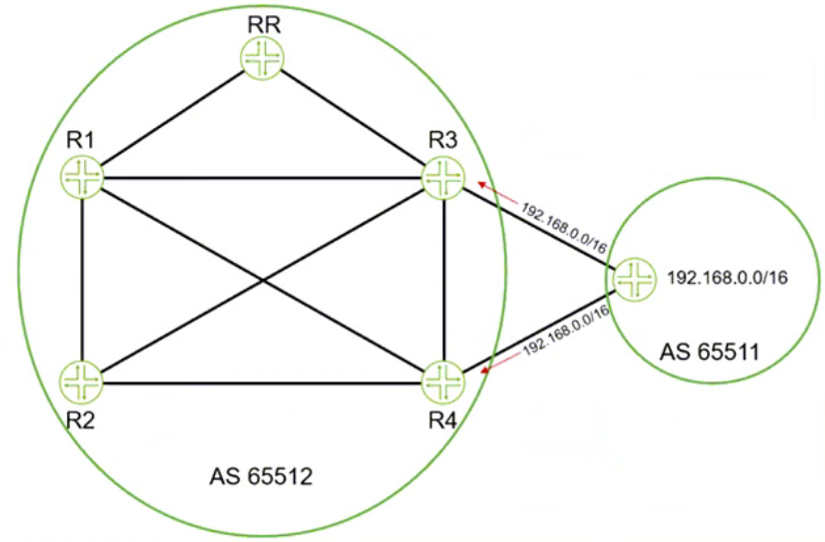

Click the Exhibit button.
Referring to the exhibit, you are receiving the 192.168.0.0/16 route on both R3 and R4 from your EBGP neighbor. You must ensure that R1 and R2 receive both BGP routes from the route reflector.
In this scenario, which BGP feature should you configure to accomplish this behavior?
  1. add-path
  2. route-target
  3. multipath
  4. multihop
Correct answer: A
Question 3

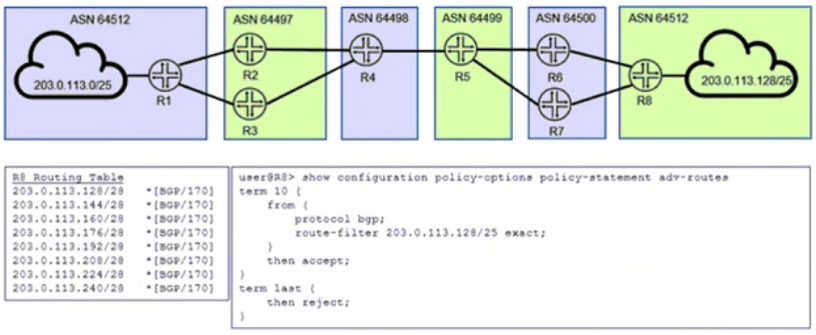

Click the Exhibit button.
You are attempting to summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500. You implement the export policy shown in the exhibit and all routes from the routing table stop being advertised.
In this scenario, which two steps would you take to summarize the route in BGP? (Choose two.)
  1. Replace exact in the export policy with orlonger.
  2. Remove the from protocol bgp command from the export policy.
  3. Add the set protocols bgp family inet unicast add-path command to allow additional routes to the RIB tables.
  4. Add the set routing-options aggregate route 203.0.113.128/25 command.
Correct answer: BD
Question 4

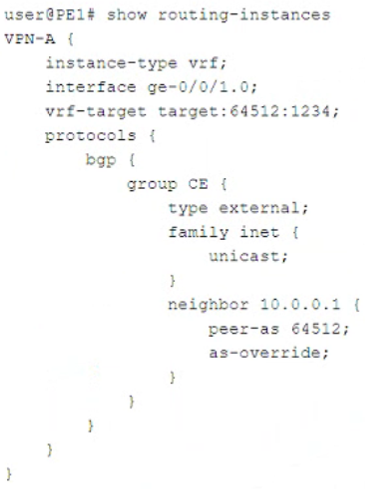

Click the Exhibit button.
Which two statements about the configuration shown in the exhibit are correct? (Choose two.)
  1. This VPN connects customer sites that use the same AS number.
  2. This VPN connects customer sites that use different AS numbers.
  3. A Layer 3 VPN is configured.
  4. A Layer 2 VPN is configured.
Correct answer: AC
Question 5

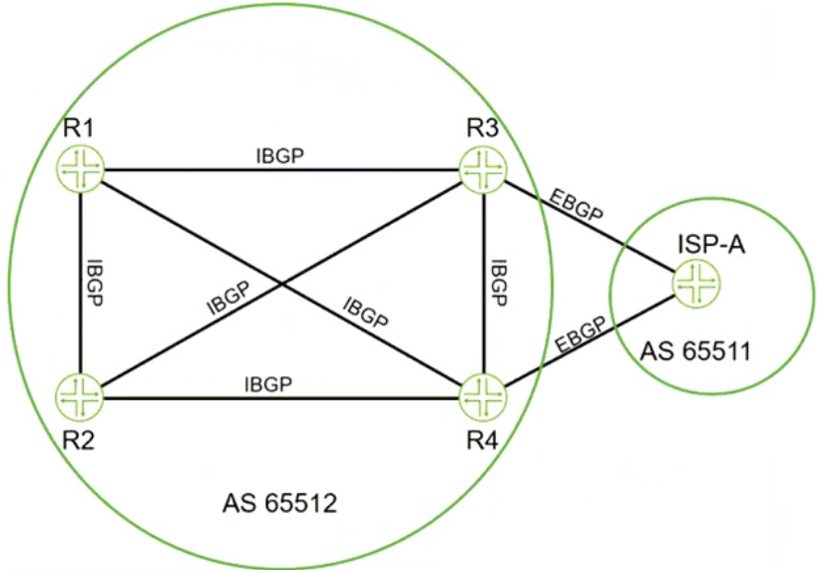

Click the Exhibit button.
Referring to the exhibit, which two statements are correct about BGP routes on R3 that are learned from the ISP-A neighbor? (Choose two.)
  1. The next-hop value for these routes Is changed by ISP-A before being sent to R3.
  2. All BGP attribute values must be removed before receiving the routes.
  3. The BGP local-preference value that is used by ISP-A is not advertised to R3.
  4. By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3.
Correct answer: AC
Question 6
You have an L2VPN connecting two CEs across a provider network. The CEs and provider network are configured with the default MTU setting. You use the ping command from one CE to the other CE with a size of 1500 bytes.
In this scenario, which statement is correct when using the ping command?
  1. You expect an ICMP message too long error.
  2. You expect an echo reply.
  3. You expect a silent discard.
  4. You expect the ping results to be fragmented.
Correct answer: C
Question 7

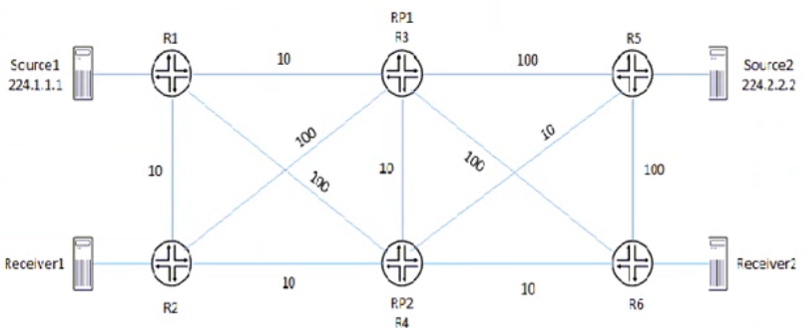

Click the Exhibit button.
Referring to the exhibit. PIM-SM is configured on all routers, and Anycast-RP with Anycast-PIM is used for the discovery mechanism on RP1 and RP2. The interface metric values are shown for the OSPF area.
In this scenario, which two statements are correct about which RP is used? (Choose two.)
  1. Source2 will use RP1 and Receiver2 will use RP1 for group 224.2.2.2.
  2. Source2 will use RP2 and Receiver2 will use RP2 for group 224.2.2.2.
  3. Source1 will use RP1 and Receiver1 will use RP1 for group 224.1.1.1.
  4. Source1 will use RP1 and Receiver1 will use RP2 for group 224.1.1.1.
Correct answer: BD
Question 8
Click the Exhibit button.
Referring to the exhibit, what do the brackets [ ] in the AS path identify?
  1. They identify that the autonomous system number is incomplete and awaiting more information from the BGP protocol.
  2. They identify that a BGP confederation is being used to ensure that there are no routing loops.
  3. They identify an AS set. which are groups of AS numbers in which the order does not matter.
  4. They identify the local AS number associated with the AS path if configured on the router, or if AS path prepending is configured.
Correct answer: D
Question 9
Which two statements are correct about IS-IS interfaces? (Choose two.)
  1. If a point-to-point interface is in both L1 and L2, separate hello messages are sent for each level.
  2. If a point-to-point interface is in both 11 and L2, one combined hello message is sent for both levels.
  3. If a broadcast interface is in both L1 and L2, separate hello messages are sent for each level.
  4. If a broadcast interface is in both L1 and L2, one combined hello message is sent for both levels.
Correct answer: BC
Question 10
Your organization manages a Layer 3 VPN for multiple customers. To support advanced route filtering on your PE routers, you must advertise more than one BGP community on advertised VPN routes to remote PE routers.
Which routing-instance configuration parameter would support this requirement?
  1. vrf-target import
  2. vrf-export
  3. vrf-target export
  4. vrf-import
Correct answer: B
Question 11

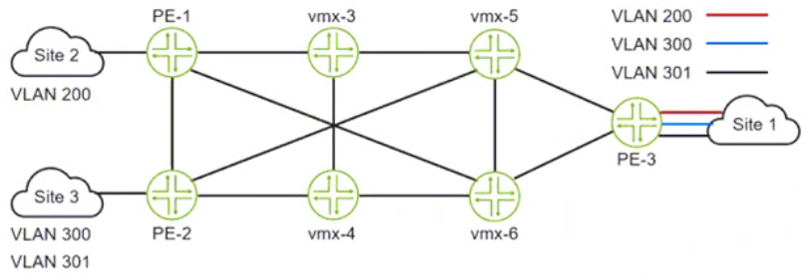

Click the Exhibit button.
You want Site 1 to access three VLANs that are located in Site 2 and Site 3. The customer-facing interface on the PE-1 router is configured for Ethernet-VLAN encapsulation.
What is the minimum number of L2VPN routing instances to be configured to accomplish this task?
  1. 1
  2. 2
  3. 3
  4. 6
Correct answer: A
