Demo Questions

Question 1
To protect the Routing Engine of your Junos device from denial-of-service attacks, you created a firewall filter.
Where do you apply the firewall filter?
  1. input on the fxp0 interface
  2. output on the fxp0 interface
  3. input on the lo0 interface
  4. output on the lo0 interface
Correct answer: C
Question 2
What are three valid types of boot media on a Junos device? (Choose three.)
  1. flash drive
  2. optical drive
  3. emergency boot media
  4. hard disk
  5. NVRAM
Correct answer: ACD
Explanation:
Question 3
Which two statements are true regarding the routing process on a Junos device? (Choose two.)
  1. The routing process implements the routing policy.
  2. The routing process runs on the Routing Engine.
  3. The routing process runs on the Packet Forwarding Engine.
  4. The routing process manages all protocols.
Correct answer: BD
Question 4
When using change-control processes, which three actions must be considered? (Choose three.)
  1. Coordinate scheduling that will be least impactful to production.
  2. Coordinate scheduling that works best with the individuals involved.
  3. Perform testing in a production environment prior to change-control.
  4. Formalize the request based on company policies.
  5. Balance troubleshooting needs with productions risks.
Correct answer: ADE
Question 5
Which two elements are preserved during a Routing Engine switchover if only GRES is enabled? (Choose two.)
  1. the Network Time Protocol (NTP) process
  2. the local interface information
  3. the routing protocol process (rpd)
  4. the kernel information
Correct answer: BD
Question 6
What information is shown in the ARP table? (Choose two.)
  1. VLAN IDs
  2. MAC addresses
  3. VLAN names
  4. interfaces
Correct answer: BD
Question 7

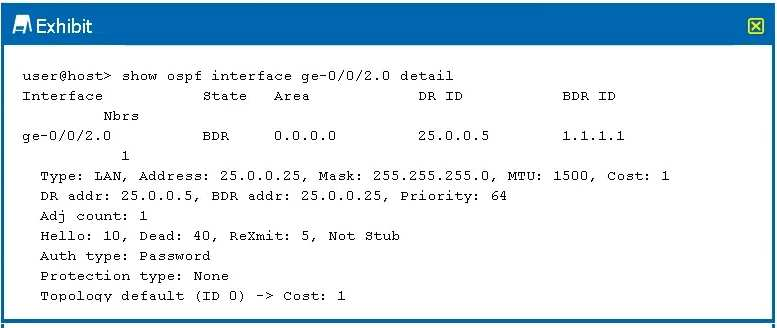

Click the Exhibit button.

Which statement is true about the output shown in the exhibit?
  1. The BDR address is 1.1.1.1.
  2. The OSPF interface is using the default priority.
  3. The OSPF interface is using md5 authentication.
  4. The BDR address is 25.0.0.25.
Correct answer: A
Question 8
Which two commands would show the speed and link-mode settings on the device’s Ethernet interfaces? (Choose two.)
  1. show interfaces statistics <interface-name> detail
  2. show interfaces terse
  3. show interfaces extensive
  4. show interfaces statistics <interface-name>
Correct answer: AC
Question 9

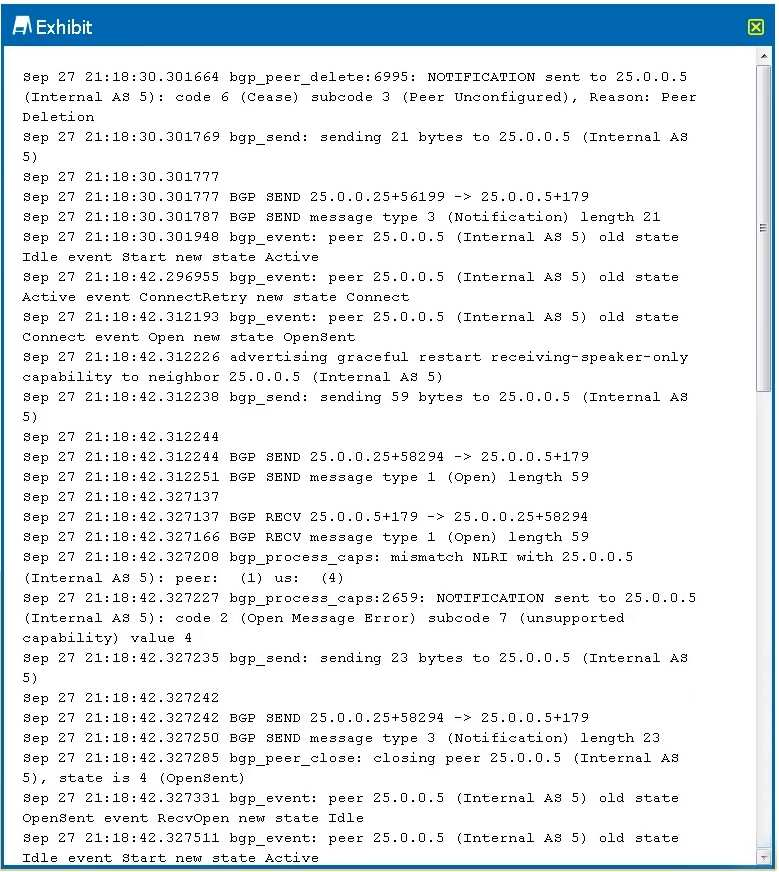

Click the Exhibit button.

Which two statements are true about the output shown in the exhibit? (Choose two.)
  1. The remote peer is configured for Layer 3 VPN support.
  2. The remote peer initially closed the BGP session.
  3. The local peer is configured for Layer 3 VPN support.
  4. The local peer initially closed the BGP session.
Correct answer: CD
Question 10
Which Junos OS feature facilitates Routing Engine redundancy?
  1. GRES
  2. OSPF
  3. VLANs
  4. SNMP
Correct answer: A
