Question 1
Your network contains an Active Directory domain named adatum.com. The domain contains a member server named Host1. Host1 runs Windows Server 2012 R2 and has the Hyper-V server role installed.
Host1 hosts two virtual machines named VM5 and VM6. Both virtual machines connect to a virtual switch named Virtual1.
On VM5, you install a network monitoring application named Monitor1.
You need to capture all of the inbound and outbound traffic to VM6 by using Monitor1.
Which two commands should you run from Windows PowerShell? (Each correct answer presents part of the solution. Choose two.)
  1. Get-VM “VM6″ | Set-VMNetworkAdapter-IovWeight 1
  2. Get-VM “VM5″ I Set-VMNetworkAdapter -IovWeight 0
  3. Get-VM “VM5″ | Set-VMNetworkAdapter -PortMirroring Source
  4. Get-VM “VM6″ | Set-VMNetworkAdapter -AllowTeaming On
  5. Get-VM “VM6″ | Set-VMNetworkAdapter -PortMirroring Destination
  6. Get-VM “VM5″ | Set-VMNetworkAdapter -AllowTeaming On
Correct answer: CE
Explanation:
- PortMirroring specifies the port mirroring mode for the network adapter. This can be set to None, Source, and Destination. If set to Source, a copy of every network packet it sends or receives is forwarded to a virtual network adapter configured to receive the packets. If set to Destination, it receives copied packets from the source virtual network adapter. In this scenario, VM5 is the destination which must receive a copy of the network packets from VM6, which s the source.
- PortMirroring specifies the port mirroring mode for the network adapter. This can be set to None, Source, and Destination.
  • If set to Source, a copy of every network packet it sends or receives is forwarded to a virtual network adapter configured to receive the packets.
  • If set to Destination, it receives copied packets from the source virtual network adapter.
In this scenario, VM5 is the destination which must receive a copy of the network packets from VM6, which s the source.
Question 2

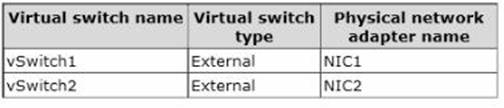

You have a Hyper-V host named Server1 that runs Windows Server 2012 R2. Server1 has the virtual switches listed in the following table.

You create a virtual machine named VM1. VM1 has two network adapters. One network adapter connects to vSwitch1. The other network adapter connects to vSwitch2.You configure NIC teaming on VM1.
You need to ensure that if a physical NIC fails on Server1, VM1 remains connected to the network.
What should you do on Server1?
  1. Run the Set-VmNetworkAdapter cmdlet.
  2. Add a new network adapter to VM1.
  3. Create a new virtual switch on Server 1.
  4. Modify the properties of vSwitch1 and vSwitch2.
Correct answer: A
Explanation:
The Set-VmNetworkAdapter cmdlet configures features of the virtual network adapter in a virtual machine or the management operating system. References: https://docs.microsoft.com/en-us/powershell/module/hyper-v/set-vmnetworkadapter?view=win10-ps
The Set-VmNetworkAdapter cmdlet configures features of the virtual network adapter in a virtual machine or the management operating system.
References: https://docs.microsoft.com/en-us/powershell/module/hyper-v/set-vmnetworkadapter?view=win10-ps
Question 3
Your network contains two Hyper-V hosts that run Windows Server 2012 R2. The Hyper-V hosts contain several virtual machines that run Windows Server 2012 R2.
You install the Network Load Balancing feature on the virtual machines.
You need to configure the virtual machines to support Network Load Balancing (NLB).
Which virtual machine settings should you configure?
  1. DHCP guard
  2. Port mirroring
  3. Router guard
  4. MAC address
Correct answer: D
Explanation:
For NLB to be configured you need to enable MAC address spoofing. References:http://social.technet.microsoft.com/Forums/windowsserver/en-US/5b3a0a9d-26a2-49ba-bbbe-29d11fcbb7ce/nlb-on-hyperv?forum=winserverhyperv
For NLB to be configured you need to enable MAC address spoofing.
References:
http://social.technet.microsoft.com/Forums/windowsserver/en-US/5b3a0a9d-26a2-49ba-bbbe-29d11fcbb7ce/nlb-on-hyperv?forum=winserverhyperv
