Demo Questions

When your device is in a default state, to which interface do you connect your management computer so you can use the Quick Setup Wizard or Web Setup Wizard to configure the device? (Select one.)

Interface 0
Console interface
Any interface
Interface 1

Correct answer: D

Explanation:

To start the Web Setup Wizard, connect your computer to interface number 1 of your XTM device with an Ethernet cable. This is the trusted interface. Reference: http://www.watchguard.com/help/docs/wsm/xtm_11/en-US/index.html#en-US/installation/qsw_web_about_c.html

To start the Web Setup Wizard, connect your computer to interface number 1 of your XTM device with an Ethernet cable. This is the trusted interface.

Reference: http://www.watchguard.com/help/docs/wsm/xtm_11/en-US/index.html#en-US/installation/qsw_web_about_c.html

In the default Firebox configuration file, which policies control management access to the device? (Select two.)

WatchGuard
FTP
Ping
WatchGuard Web UI
Outgoing

Correct answer: AD

To use the Web Setup Wizard or Quick Setup Wizard to configure your Firebox or XTM device, your computer must have an IP address on which subnet? (Select one.)

10.0.10.0/24
10.0.1.0/24
172.16.10.0/24
192.168.1.0/24

Correct answer: B

What is the best method to downgrade the version of Fireware OS on your Firebox without losing all device configuration settings? (Select one.)

Restore a saved backup image that was created for the device before the last Fireware OS upgrade.
Use the Upgrade OS feature in Fireware Web UI to install the sysa_dl file for an order version of Fireware OS.
Change the OS compatibility setting in Policy Manager to downgrade the device. Then use Policy Manager to save the configuration to the device.
Use the downgrade feature on Policy Manager to select a previous of Fireware OS.

Correct answer: A

You configured four Device Administrator user accounts for your Firebox. To see a report of witch Device Management users have made changes to the device configuration, what must you do? (Select two.)

Start Firebox System Manager for the device and review the activity for the Management Users on the Authentication List tab.
Connect to Report Manager or Dimension and view the Audit Trail report for your device.
Open WatchGuard Server Center and review the configuration history for managed devices.
Configure your device to send audit trail log messages to your WatchGuard Log Server or Dimension Log Server.

Correct answer: BC

Which items are included in a Firebox backup image? (Select four.)

Support snapshot
Fireware OS
Configuration file
Log file
Feature keys
Certificates

Correct answer: BCEF

Explanation:

A Firebox backup image is a saved copy of the working image from the Firebox flash disk. The backup image includes the Firebox appliance software, configuration file, licenses, and certificates. When you purchase an option for your Firebox, you add a new feature key to your configuration file. Reference: Fireware Basics, Courseware: WatchGuard System Manager 10, pages 14, 57

A Firebox backup image is a saved copy of the working image from the Firebox flash disk. The backup image includes the Firebox appliance software, configuration file, licenses, and certificates.

When you purchase an option for your Firebox, you add a new feature key to your configuration file.

Reference: Fireware Basics, Courseware: WatchGuard System Manager 10, pages 14, 57

Only 50 clients on the trusted network of your Firebox can connect to the Internet at the same time. What could cause this? (Select one.)

TheLiveSecurity feature key is expired.
The device feature key allows a maximum of 50 client connections.
The DHCP address pool on the trusted interface has only 50 IP addresses.
The Outgoing policy allows a maximum of 50 client connections.

Correct answer: C

The IP address for the trusted interface on your Firebox is 10.0.40.1/24, but you want to change the IP address for this interface. How can you avoid a network outage for clients on the trusted network when you change the interface IP address to 10.0.50.1/24? (Select one.)

Create a 1-to-1 NAT rule for traffic from the 10.0.40.0/24 subnet to addresses on the 10.0.50.0/24 subnet.
Add 10.0.40.1/24 as a secondary IP address for the interface.
Add IP addresses on the 10.0.40.0/24 subnet to the DHCP Server IP address pool for this interface.
Add a route to 10.0.40.0/24 with the gateway 10.0.50.1.

Correct answer: B

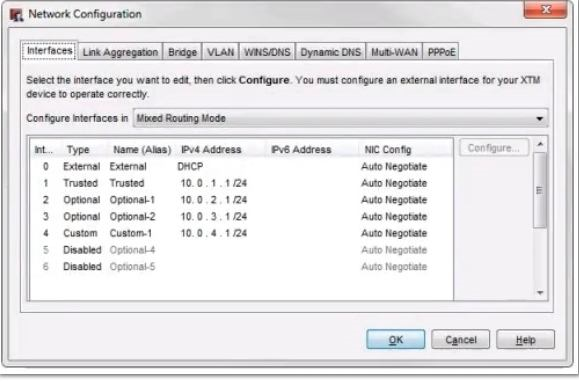

In the network configuration in this image, which aliases is Eth2 a member of? (Select three.)

Any-optional
Any-External
Optional-1
Any
Any-Trusted

Correct answer: ACD

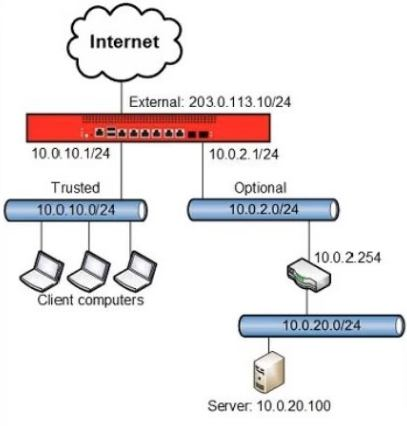

Clients on the trusted network need to connect to a server behind a router on the optional network. Based on this image, what static route must be added to the Firebox for traffic from clients on the trusted network to reach a server at 10.0.20.100? (Select one.)
